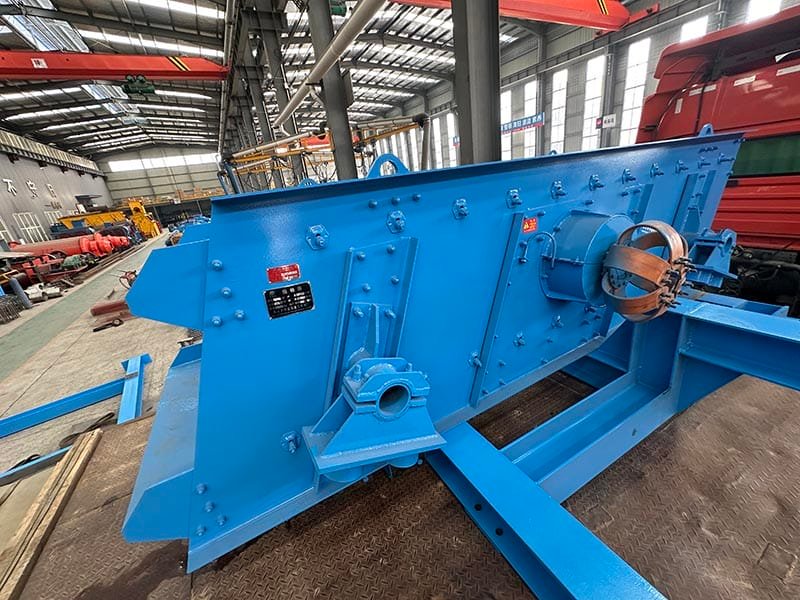

Vibrating Screen

What is  Vibrating screen Circular vibrating screen (vibration screen) is a kind of circular vibration, multi-layer, efficient new vibrating screen. Circular vibrating screen adopts cylinder type e……

  • Feed size: ≤400 mm
  • Productive capacity:20-350 t/h
  • Application:Aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc
  • Application scope: Mining, building materials, transportation, energy, chemical and other industries

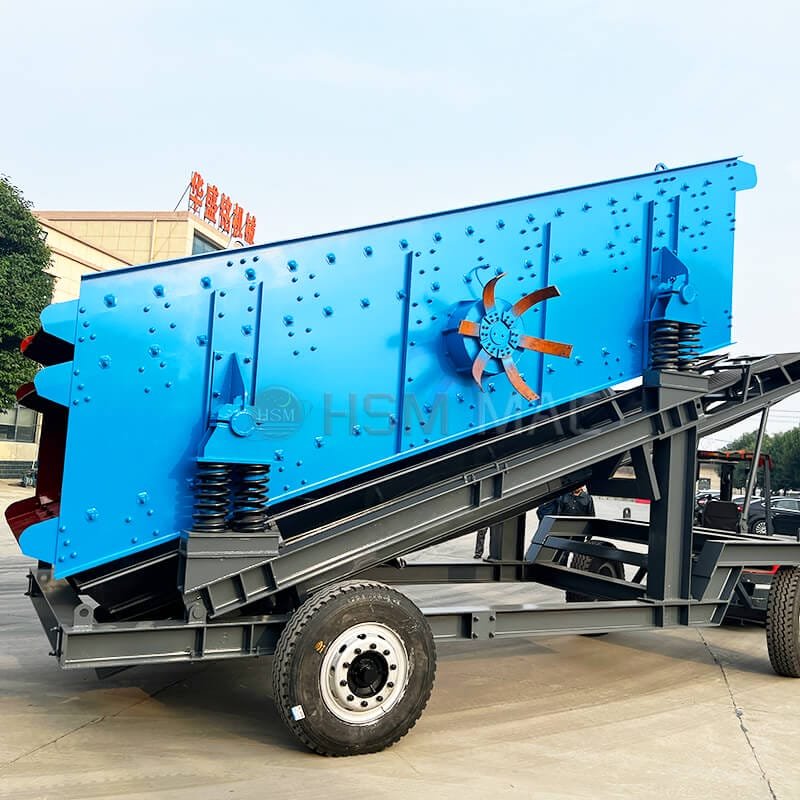

Mobile vibrating screen

What is  Vibrating screen

Circular vibrating screen (vibration screen) is a kind of circular vibration, multi-layer, efficient new vibrating screen. Circular vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust amplitude, material sieve flow line long, screening specifications, with reliable structure, strong vibration force, high screening efficiency, small vibration noise, durable, easy maintenance, safety and other characteristics, the vibrating screen is widely used in mining, building materials, transportation, energy, chemical industry product classification.

Round vibrating screen is suitable for metal, metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory, kaolin, lime, alumina, heavy calcium carbonate, quartz sand and so on.

Working principle

The circular vibrating screen is mainly composed of screen box, screen, vibrator and vibration damping spring. The vibrator is installed on the side plate of the screen box, and driven by the motor through the triangle belt rotation, generating centrifugal inertia force, forcing the screen box vibration. If no special requirements, YA and 2YA for textile screen surface, YAH for punching screen surface, all kinds of screen surface can be satisfied.

Performance advantages

Circular vibrating screen (vibration screen) structure: mainly composed of screen box, vibrator, suspension (or support) device and motor. The motor through the triangle belt, drive the shaker spindle rotation, because the shaker on the unbalanced weight of the centrifugal inertia force, so that the sieve box vibration. Different amplitudes can be obtained by changing the eccentric weight of the shaker.

Performance characteristics:

1. Circular vibrating screen adopts cylinder type eccentric shaft vibrator and offset block to adjust amplitude, easy to use and maintenance.

Two. Round vibrating screen using spring steel braided screen or perforated screen plate, long service life, not easy to plug holes.

Three. The circular vibrating screen adopts rubber vibration isolation spring, long life, small noise, stable resonance area, etc.
