Iron Slag Crusher

What is Iron slag crusher Iron slag crusher is also known as roll crusher, roll crusher and roll breaker. Roller crusher is to use two sets of individual transmission rollers, relative rotation to p……

  • Feed size: 25-100mm
  • Productive capacity:4-500t/h
  • Application:River pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, lapis lazuli, mountain stone, limestone, weathered sand, pyroxene, granite, basalt, etc.
  • Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

What is Iron slag crusher

Iron slag crusher is also known as roll crusher, roll crusher and roll breaker. Roller crusher is to use two sets of individual transmission rollers, relative rotation to produce the squeezing force and grinding shear force to crush materials. When the material enters the crushing chamber of the machine, the material is subjected to the meshing force of the rotating rollers, so that the material is forced to pass between the two rollers, and at the same time, the material is subjected to the squeezing and shearing force of the rollers, and the material starts to be crushed, and the small particles after being crushed will pass through the gap of the two rollers along the tangent line of the rotating rollers and be thrown out below the machine, and large particles over the gap will continue to be crushed and be discharged as small particles.

Roller crusher (roller crusher) can be used in mineral processing, chemical cement, refractory materials, abrasives, building materials and other industrial sectors, fine crushing of high. The roller crusher can be used in mineral processing, chemical cement, refractory materials, abrasive materials, building materials and other industrial sectors to finely crush high… Roller crusher (roller breaker) especially in the refractory materials and mining industry than the general crushing machinery. In recent years, it is also widely used in crushing iron slag.

Reasons for choosing us

  1. Compared with hammer sand making machine, roller crusher does not need to replace wearing parts.

2. The finished product features pretty shape, well gradation, low over-crushing rate and high output.

  1. Roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4. Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

Machine-testing Video

It is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs.

Iron Slag crusher is to use two sets of individually driven rollers to crush materials by squeezing and grinding shear force generated by relative rotation. The material falls into between the two rollers through the feeding port, and the finished products fall naturally after crushed by the roller extrusion. When encountering too hard or unbreakable materials, the rollers can automatically back off by the action of hydraulic cylinder or spring, so that the gap between the two rollers increases, and the hard or unbreakable materials fall naturally to ensure that the machine is not damaged, Two rollers rotating in opposite directions can be used to control the particle size of the product by adjusting the pressure of hydraulic cylinders or springs.

Rocks roller crusher working principle

The Iron Slag crusher operates through rollers. The Iron Slag, put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

stone roller crusher Working Principle

Product category

Roller crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

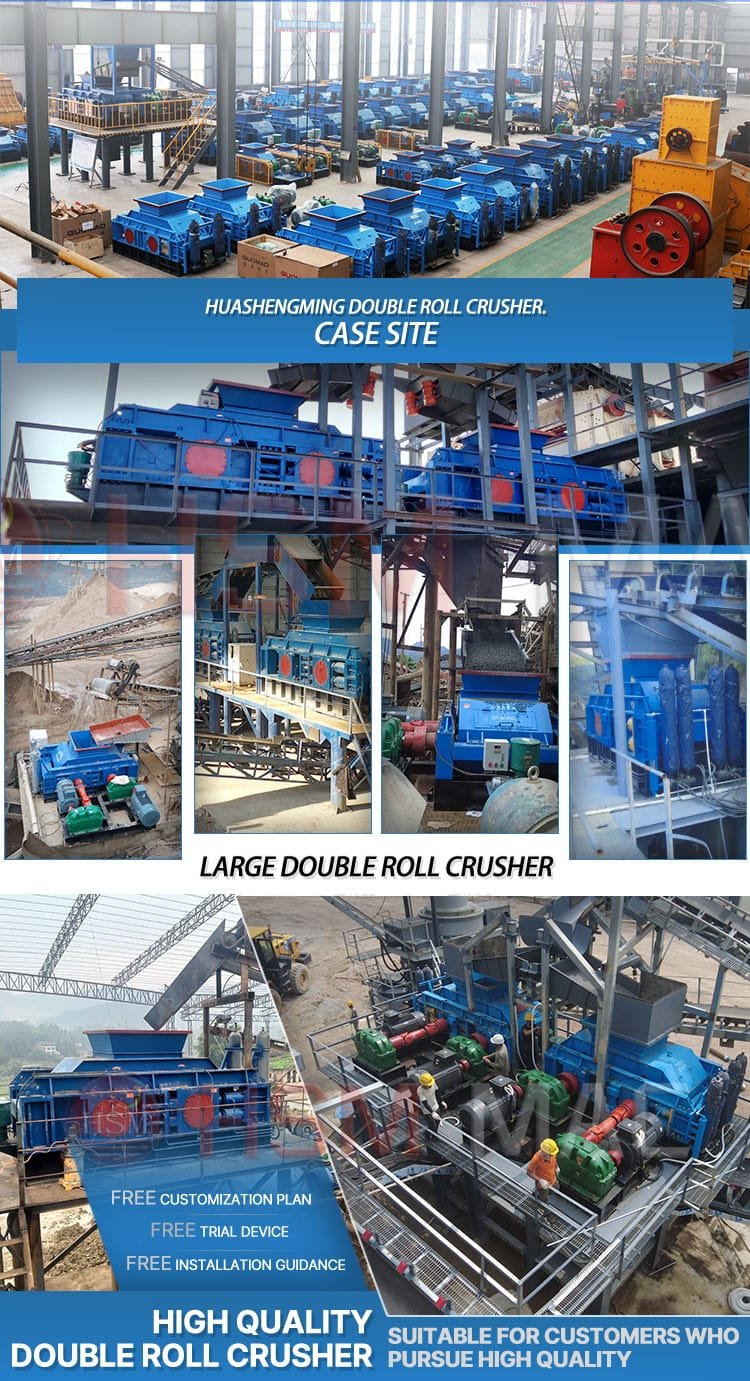

stone roll crusher case scene

Product Model

There are small, medium and large  roller crusher.

  1. Small stone roller crusher: 250×250,400×250,400×400,610×400  Production capacity: 2-12 tph
  1. Medium roller crusher: 750×500,800×600,800×800,1000×800  Production capacity: 20-50 tph
  1. Large roller crusher: 1200×800,1200×1000,1500×800,1500×1000,1500×1200,1800×1200,2000×1000 or larger  Production capacity: 50-400 tph

HSM machines features different configurations. The sales manager can recommend the proper product to the customers according to their facts.





Specification and model

Roll diameter

(mm)

Feed size

(mm)

Productive capacity

(t/h)

2PGT400×250
φ400
≤25
2-10
2PGT400×400
φ400
≤25
5-12
2PGT610×400
φ610
≤30
5-20
2PGT750×500
φ750
≤30
10-40
2PGT800×600
φ800
≤40
12-50
2PGY800×800
φ800
≤40
40-50
2PGY800×1000
φ800
≤40
50-80
2PGY1000×800
φ1000
≤40
50-80
2PGY1000×1000
φ1000
≤40
80-100
2PGY1200×1000
φ1200
≤60
100-120
2PGY1200×1200
φ1200
≤60
120-150
2PGY1500×1000
φ1500
≤80
150-200
2PGY1500×1200
φ1500
≤80
200-250
2PGY1800×1000
φ1800
≤100
250-300
2PGY2000×1200
φ2000
≤120
300-400
