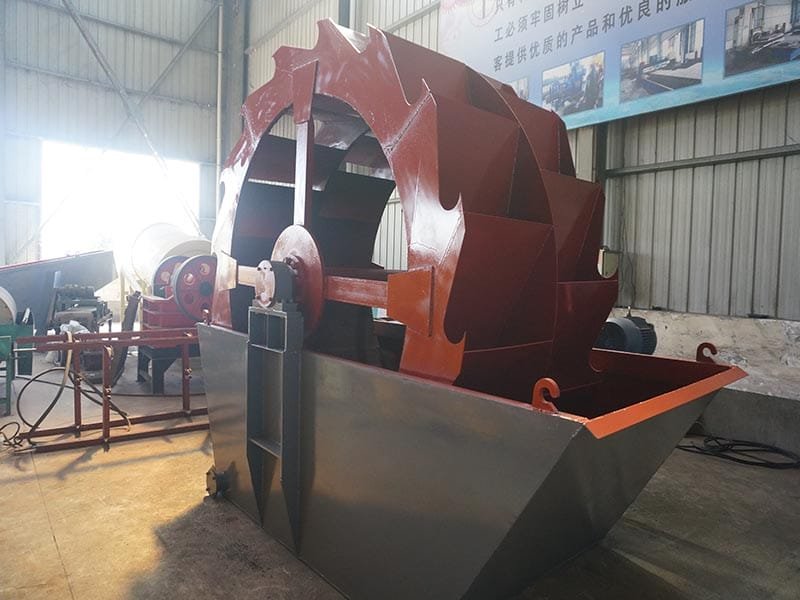

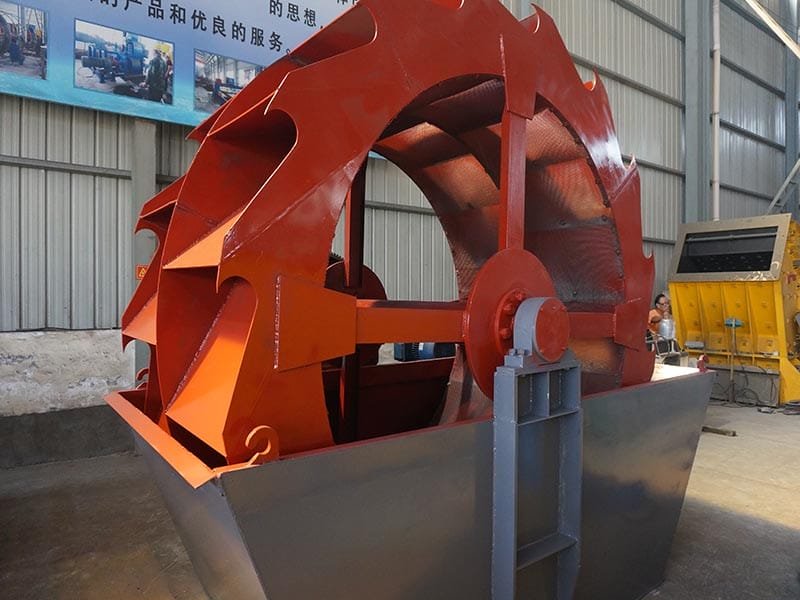

Bucket Sand Washer
Bucket Sand Washer
What is Bucket Sand Washer Equipment configuration: Sand Washer Working principle When Bucket Sand Washer begin running, the motor drives the impeller to rotate slowly through the V-belt, reducer an……
- Feed size: <10mm
- Productive capacity:15-180t/h
- Application:Widely used in gravel pits, mining, building materials, transportation, chemical industry, water utilities, concrete mixing stations and other industries in the washing of material.
- Application scope:
What is Bucket Sand Washer
Equipment configuration: Sand Washer
Working principle

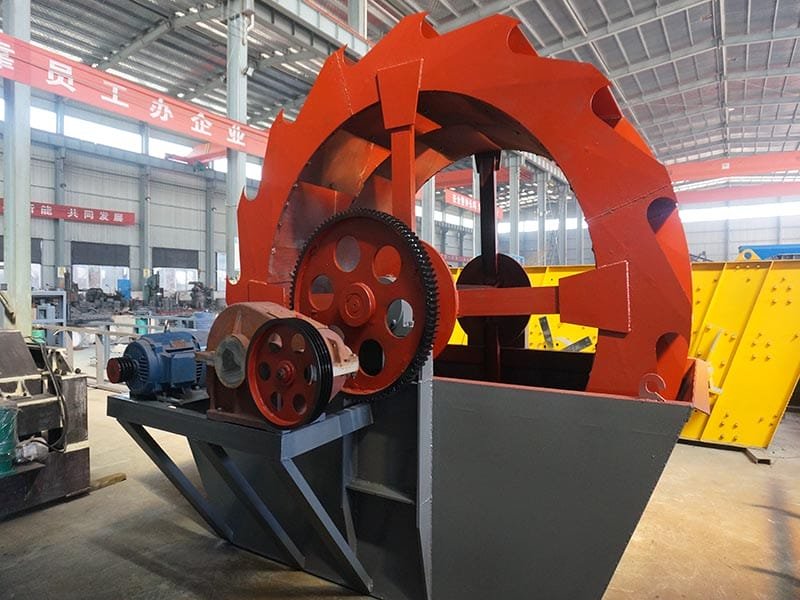

When Bucket Sand Washer begin running, the motor drives the impeller to rotate slowly through the V-belt, reducer and gears after decelerating, and the sand enters into the washing tank from the feeding trough, tumbles and grinds with each other under the driving of the impeller, removing the impurities covering the surface of the sand and gravel, and destroying the water vapor layer that covers the sand particles for dewatering; and water, at the same time, is added to form a strong water current, which will take away the impurities and other small matters in time. Finally, the gravel is fed into discharge chute and the cleaning is complete.
Product advantage
- Long life span, convenient maintenance.
- Water-saving, no pollution, high cleanliness.
- Low production cost(Fewer wear parts)
- Low loss of medium and fine sand. Low loss of stone powder.(The grading of aggregate and fineness of the washed sand reaches the standards of “Sand for Construction” and “Pebbles and Gravel for Construction”.)
| Specification | Processing capacity (t/h) |
Motor power (kw) |
| 2208 | 15-40 | 8p 4kw |
| 2611 | 20-65 | 8p 5.5kw |
| 2914 | 50-100 | 8p 7.5kw |
| 3020 | 120-200 | 8p 11kw |
