When selecting fine-crushing equipment for mineral processing, mine operators evaluate three fundamental financial metrics: electricity bills, wear-part expenses, and finished recovery rates. Double roll crushers demonstrate clear, proven advantages across all three categories, alongside critical operational safeguards like hydraulic tramp metal protection and low over-crushing ratios. This article breaks down six core advantages of roll crushing in ore processing, application boundaries, and how Huashengming (HSM) Heavy Industry engineers custom beneficiation solutions.
Ore hardness spans a wide spectrum from soft to extremely hard, and processing capacities are universally substantial. When selecting fine-crushing equipment, clients ultimately compare three core financial accounts: electricity consumption, consumable parts expenses, and mineral recovery rates. Double roll crushers deliver definitive advantages across all three metrics, complemented by several specialized bonuses that mineral processing operations value above all else.

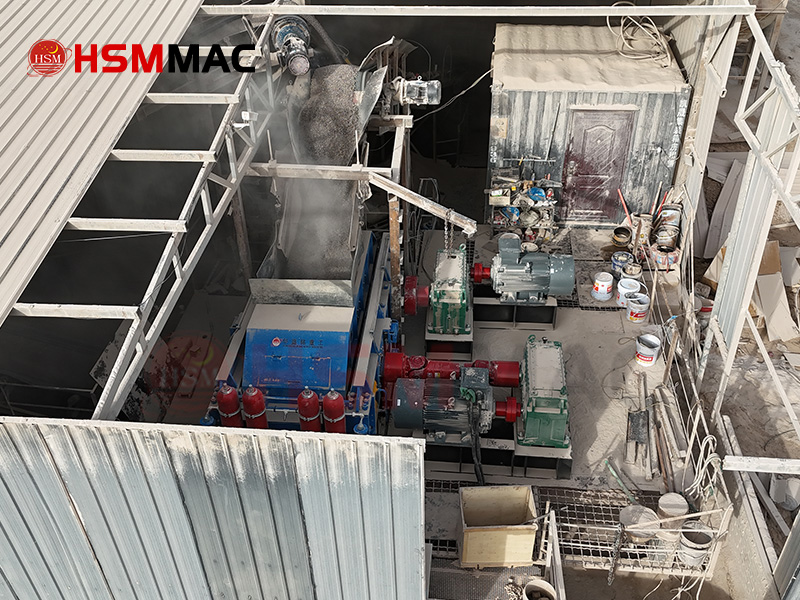

HSM Hydraulic Double Roll Crusher Operating in an Industrial Ore Processing Plant
1. Six Core Operational & Economic Advantages
| Core Advantage | Engineering Mechanism | Plant Economic & Operational Benefit |
|---|---|---|
| 1. “More Crushing, Less Grinding” | Reduces ball mill feed size significantly prior to grinding circuits 【Custom Parameters Available】. | Grinding consumes the lion’s share of plant electricity; finer mill feed slashes overall grinding power bills dramatically. |
| 2. Minimal Wearing Parts | Lacks high-frequency hammers/throwers; utilizes uniform high-chromium roller shells. | Replaces constant consumable replacements with periodic maintenance; shells can be replaced independently without overhauls. |
| 3. Low Power Draw Per Ton | Low-speed, single-pass compression with zero high-speed rotor windage losses. | Reduces specific energy consumption ($kWh/t$), multiplying annual savings across high-tonnage ore processing. |
| 4. Adjustable Sizing & Flexibility | Simple mechanical or hydraulic inter-roll gap adjustments. | Accommodates multi-face quarry mining and mixed ore feeds by adjusting parameters rather than swapping out parts. |
| 5. Hydraulic Tramp Protection | High-response hydraulic accumulators allowing movable rolls to retract and reset. | Safeguards against stray drill bits and excavator teeth, preventing costly unexpected plant shutdowns. |
| 6. Low Over-Crushing Recovery | “Sufficiently crushed, immediately discharged” compression logic. | Minimizes fine slimes that cause mineral loss during flotation or gravity separation, protecting valuable metal recovery rates. |

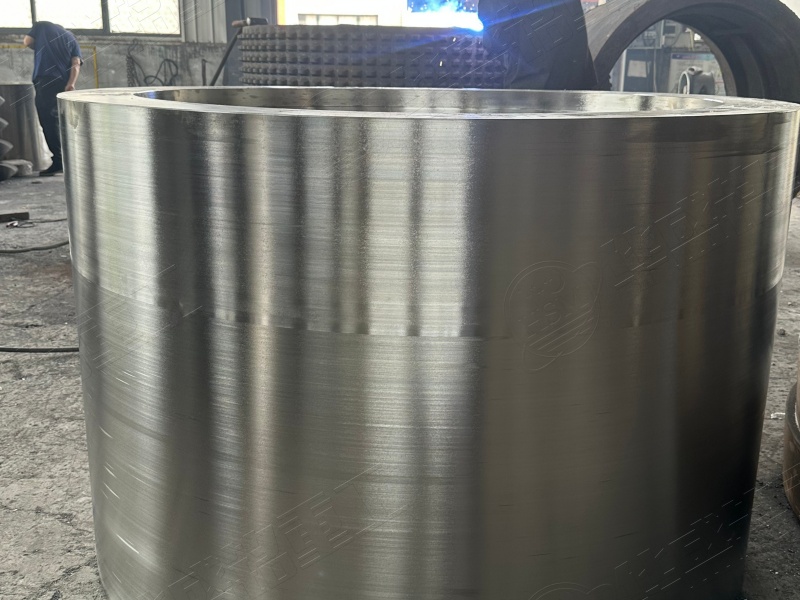

High-Chromium Wear Shells
2. Application Boundaries & Circuit Positioning
✅ Highly Suitable Applications:
Fine crushing of metallic ores (iron ore, copper ore, etc. equipped with high-chromium wear shells) and medium-to-low hardness non-metallic minerals (calcite, barite, phosphate rock, coal-series minerals) 【Custom Parameters Available】.
❌ Not Suitable For:
Extremely muddy, high-moisture sticky ores (which require upstream washing or pre-drying).
📍 Operational Positioning:
Double roll crushers function exclusively as fine-reduction machinery. They are never intended for primary coarse reduction; upstream jaw and cone crushers must handle initial heavy reduction stages.
3. Four Essential Parameters for Accurate Sizing
To receive a precise engineering proposal and quotation, please provide:
- Ore Name & Compressive Hardness: (e.g., iron ore, copper ore, calcite)
- Maximum Feed Lump Dimensions: (Top-size entering the fine crushing stage)
- Target Mill Feed Sizing or Finished Fineness: (Required output gradation specs)
- Expected Processing Capacity: (Tons per hour target)
Providing these four details allows Huashengming to specify exact equipment models, roll dimensions, motor power ratings, roller metallurgies, and complete circuit flowsheets 【Custom Parameters Available】.
Referenced process descriptions serve as engineering guidelines; specific applicability is governed by ore material testing and formal project agreements.
