This article provides an in-depth guide on adjusting the roll gap—the core discharge control mechanism of double roll crushers. By exploring adjustment methods including hydraulic, shimming, and spring-protected systems, the piece outlines essential step-by-step procedures, single-stage reduction limits, parallel alignment rules, and wear compensation strategies, empowering aggregate plants to master product gradation control and maximize operational flexibility.
The roll gap (inter-roll clearance) acts as the discharge switch of a double roll crusher: a wide gap yields coarser output, while a narrow gap produces finer material. Mastering how to adjust the roll gap allows a single machine to adapt to varying particle size requirements and compensate for output coarsening caused by natural shell wear. Huashengming (HSM) double roll crushers support multiple roll gap adjustment mechanisms, offering simple operation and precise, stable control over discharge particle size.

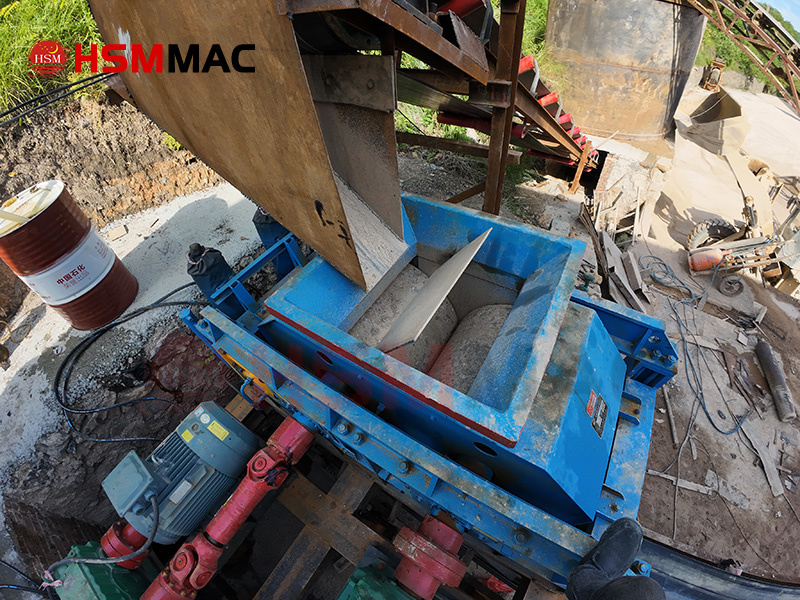

Roll Gap Hydraulic & Shimming Adjustment Assembly
1. What Is the Roll Gap?
The roll gap is the clearance distance between the two counter-rotating rollers, determining the maximum dimension of material able to pass through the crushing zone. As material is squeezed between the rolls, whatever distance the gap is set to dictates the final discharge size. This adjustability is the fundamental reason double roll crushers offer exceptional product sizing flexibility.
2. Common Roll Gap Adjustment Methods
| Adjustment Type | Operating Mechanism & Benefits | Ideal Application Scenario |
|---|---|---|
| Hydraulic Adjustment | Automated hydraulic system shifts roll position; high precision. | Plants requiring frequent product specification changes. |
| Shim Plate Adjustment | Adding or removing steel spacer shims; simple and cost-effective. | Long-run operations with steady, fixed product sizing requirements. |
| Spring-Protected Adjustment | Spring-loaded assembly allows rolls to retract safely upon impact. | Standard crushers balancing gap setting with tramp protection. |
*Different models feature distinct configurations; select the adjustment mechanism based on your operational requirements 【Custom Parameters Available】.
Checking the Gap in a Double-Roll Crusher
3. Step-by-Step Adjustment Procedure
- Define Target Sizing: Determine the required product fineness modulus before establishing the corresponding gap clearance.
- Follow Safety & Manual Instructions: Operate hydraulic controls according to protocol or shut down power completely before inserting/removing shim plates.
- No-Load Test Run: Run the equipment unloaded after adjustment to verify smooth mechanical operation before introducing feed.
- Small-Batch Verification: Process a small batch of raw material first to inspect output gradation against standards before resuming full-scale production.
4. Crucial Precautions During Adjustment
- 1. Avoid Infinite Fine Adjustments: Gap clearance has a lower operating limit. Closing rolls excessively fine reduces hourly tonnage (TPH), increases motor load, and accelerates roll wear. Balance sizing goals with throughput efficiency.
- 2. Match Reduction Ratios: Single-stage reduction ratios typically range between 2.5:1 and 4:1. If size reduction demands exceed this range, utilize multi-stage crushing circuits.
- 3. Maintain Parallel Alignment: Ensure both ends of the movable roll maintain identical gap clearance to prevent uneven roller wear and inconsistent discharge sizing.
- 4. Compensate for Wear Promptly: When natural roll shell wear causes output to coarsen, incrementally close the roll gap to restore original sizing specifications 【Custom Parameters Available】.
5. When Should You Adjust the Roll Gap?
- Product Specification Changes: Shifting production grades to meet new civil engineering or commercial concrete standards.
- Downstream Process Requirements: Modifying secondary crusher output to optimize feed size for downstream sand making or ball mill grinding circuits.
- Roll Shell Wear Compensation: Closing the gap periodically as shell faces wear down over months of operation, extending the operational life cycle of your roller shells.
Need Expert Guidance on Roll Gap Optimization?
Contact Huashengming Heavy Industry engineers to select the correct gap adjustment configuration for your project and minerals 【Custom Parameters Available】.
Schedule a free raw material sample trial run today.
