Double‑Tooth Roll Crusher – Engineered Solution for Bentonite Crushing Crushing Solutions

1. Engineering Challenges in Bentonite Crushing

Bentonite is a clay mineral with high moisture absorption and swelling capacity. Traditional crushers face four major issues:

Clogging: High moisture and stickiness cause severe blockages in screens and chambers, leading to frequent shutdowns and cleaning.

Over-crushing: Impact action generates excessive ultrafine powder, complicating dust control and reducing product grade for downstream processing.

Abrasive wear: Hard impurities (quartz, feldspar) accelerate wear on hammers and liners, increasing maintenance costs.

Inconsistent sizing: Traditional machines produce a wide particle distribution, disrupting subsequent grinding and classification.

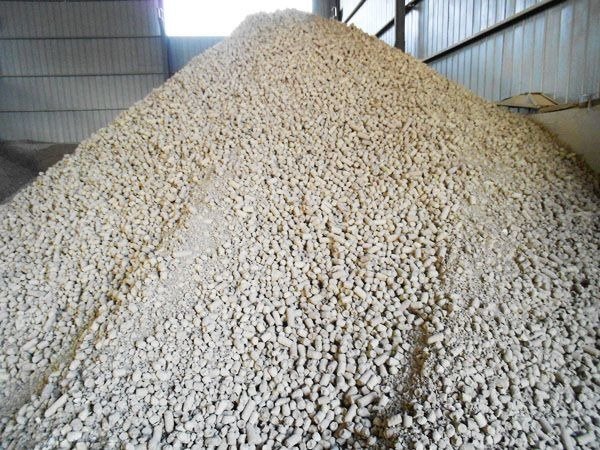

bentonite

2. Engineered Crushing Technology Strategy

Strategy A: Low-Speed Squeezing to Minimize Over-Crushing

The double-tooth roll crusher applies low-speed squeezing, shearing, and splitting forces. Material fractures along natural cleavage planes with minimal ultrafines, producing uniform lumps and facilitating downstream processing.

Strategy B: Anti-Clogging Self-Cleaning Tooth Profile

Special intermeshing teeth automatically scrape off sticky material during rotation. Low-speed, high-torque operation ensures rapid discharge and short residence time, preventing accumulation and ensuring continuous production.

Strategy C: Customizable Tooth Shapes and Precise Size Control

Tooth configurations (wolf, wave, strip, etc.) and roll gap adjustments allow precise output control from several millimeters to tens of millimeters, meeting varied coarse or medium crushing needs.

Strategy D: Wear-Resistant Alloy Rolls for Abrasive Components

High-manganese steel rolls resist abrasion from hard quartz impurities, significantly extending roll life, reducing replacement frequency, and lowering maintenance costs.

Strategy E: Overload Protection and Tramp Material Rejection

Spring or hydraulic systems let the movable roll retreat instantly when uncrushable objects enter, allowing them to pass safely before automatic reset – preventing equipment damage.

Hydraulic Double Tooth Roller Crusher

3. Measurable Plant Performance Targets (Shortened)

No wet-sticky blockage: Self-cleaning teeth & low-speed ensure discharge even at >25% moisture – zero downtime.

Fines reduced >30%: Squeezing action improves uniformity and downstream efficiency.

Longer roll life: Wear-resistant alloys & low speed cut wear, lowering part costs.

Easy size adjust: Roll gap changes instantly without screen replacement.

Versatile: Handles bentonite, gypsum, limestone, coal gangue, shale – one machine, high ROI.
