We focus on manufacturing high-performance double-roll sand making machines. Our equipment is meticulously designed to efficiently process over 200 types of hard materials, including river pebbles, cobblestone, limestone, quartzite, and more!

Two models of Iron ore crusher

Our roll crusher is specifically designed to meet the production demands of small, medium, and large sand making plants. We offer ready-to-ship machines equipped with our patented wear-resistant roller shells, which feature exceptional abrasion resistance, durability, and heat resistance. No wear parts are needed; with intelligent one-button control, operation is extremely convenient and efficient.

Iron ore crushermanufacturer – factory direct with ready stock

Working Principle

Working Principle ofIron ore crusher

The gap between the two rolls of the machine can be freely adjusted from 1 mm to 20 mm. Once the roll gap is preset, the crushing particle size can be reliably controlled, and all materials are discharged from the lower part of the crushing chamber at the ideal particle size.

The double roll crusher can be used for sand making from the following materials:

It can produce sand from over 200 types of materials, including river pebbles, cobblestone, bluestone, quartzite, volcanic rock, iron ore, weathered rock, limestone, granite, sandstone, marble, and gypsum.

Materials Suitable for Iron ore crusher Sand Making

The double roll crusher is suitable for fine crushing in mineral processing:

Fine crushing of various ores, including gold ore, silver ore, tungsten ore, tin ore, magnetite, copper ore, manganese ore, lead-zinc ore, iron ore, graphite ore, chromite, phosphate ore, metallurgical silicon, etc.

Materials Suitable for Iron ore crusher Mineral Processing

The double roll sand making machine process flow:

The double roll sand making machine can be used as sand making equipment in sand production lines without wear parts, and also as fine crusher in mineral processing lines to crush metal ores, achieving doubled output.

Double roll crusher and high-pressure double roll crusher on the production site

In sand production applications：

The double roll crusher is used as a sand making machine, offering advantages such as no wear parts, low maintenance cost, adjustable sand particle size, high output, and excellent sand particle shape, making it widely used in the sand making industry.

Application of Iron ore crusher Sand Making

In mineral processing applications：

The double roll crusher or high pressure grinding roll (HPGR) is used for fine crushing. They are typically located upstream of the ball mill, capable of crushing ore particles of 2-3 cm down to below 1 mm, thereby significantly improving the operating efficiency of the ball mill and increasing overall production capacity.

Iron ore crusher Mineral Processing Applications

Double roll crushers are available in large, medium, and small models. The following is a classification based on different models:

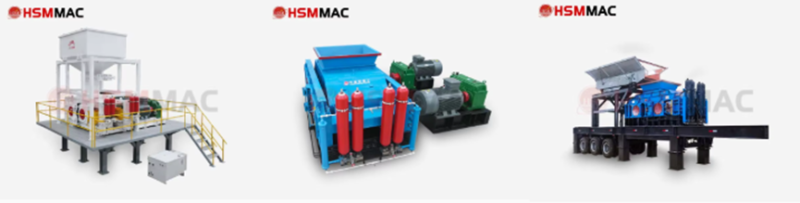

Three models of Iron ore crusher

1. Small spring double roll crushers, such as models 2PGT400×250, 2PGT400×400, and 2PGT610×400, with an hourly output of approximately 2-20 tons. These models are ideal for investment and use in small and medium-sized sand plants.

2. Medium spring double roll crushers, including models 2PGT750×500 and 2PGT800×600, with an hourly output of 10-50 tons.

3. Medium hydraulic double roll crushers, such as models 2PGY750×500, 2PGY800×600, 2PGY800×800, and 2PGY1000×800, producing 20-80 tons per hour. These hydraulic models are more intelligent, offer higher output, and save costs.

4. Large flagship series CNC hydraulic double roll crushers, including models 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, and 2PGY2000×1000, with an hourly output of 80-400 tons. These models are suitable for medium and large sand plants.

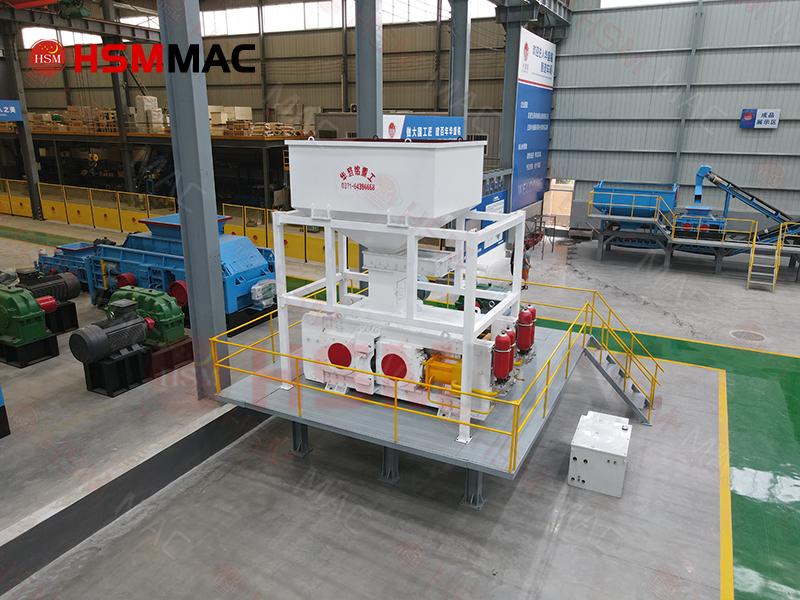

Iron ore crusher Production Workshop

Why Choose Huashengming

Superior to hammer crushers – no wear parts, excellent sand shape, and high capacity.

1. Superior to hammer crushers – no wear parts, excellent sand shape, and high capacity.
2. Suitable for sand plants, metal mine crushing, waste rock crushing, etc., with outstanding quality.
3. Works for over 200 types of stones, handles both dry and wet materials, and features one-button operation.
4. National patent roller shell material with a service life of ≥2 years.


   Customer Reviews of Iron ore crusher

Customer website

Over 20,000 customer sites. Delivery is just the beginning; after-sales service never stops.

Iron ore crusher Production Site

High Pressure Double Roll Crusher production site

Patents and Certifications for Iron ore crusher

1. Wear-resistant, long service life

High-chromium manganese steel rolls last over 2 years.

2. Adjustable discharge size

Hydraulic system adjusts roll gap in real time, 1-5mm.

3. Good particle shape, low over-grinding

Double-roll squeezing produces cubic particles with minimal fines.

4. Intelligent control, stable operation

PLC system for one-touch start, real-time monitoring, and overload protection.

5. Energy-saving, low cost

Interparticle crushing saves 30%-45% electricity, reducing overall costs.
