Key Takeaways:
- No One-Size-Fits-All Lifespan: Wear life varies significantly depending on material hardness, feed size distribution, moisture content, and operating intensity.
- Extended Service Cycles: High-durability alloy roll shells offer substantially longer service intervals than standard roller surfaces under normal operating conditions.
- Rebuildable via Hardfacing: Worn roll surfaces can be repaired on-site using specialized hardface welding, lowering the total cost per ton over time.
- Preventive Maintenance: Monitoring discharge size and roller surface wear profiles prevents premature failure and costly unplanned downtime.
“How long will the wear-resistant roll shells last?” This is one of the most frequent questions aggregate producers ask. The straightforward answer: there is no single fixed timeline. Wear life depends entirely on operational factors including rock hardness, feed size consistency, moisture levels, and machine duty cycles. Huashengming Heavy Industry (HSM) utilizes high-alloy wear materials designed to extend replacement intervals and supports hardfacing weld repair to minimize long-term operating expenditure.

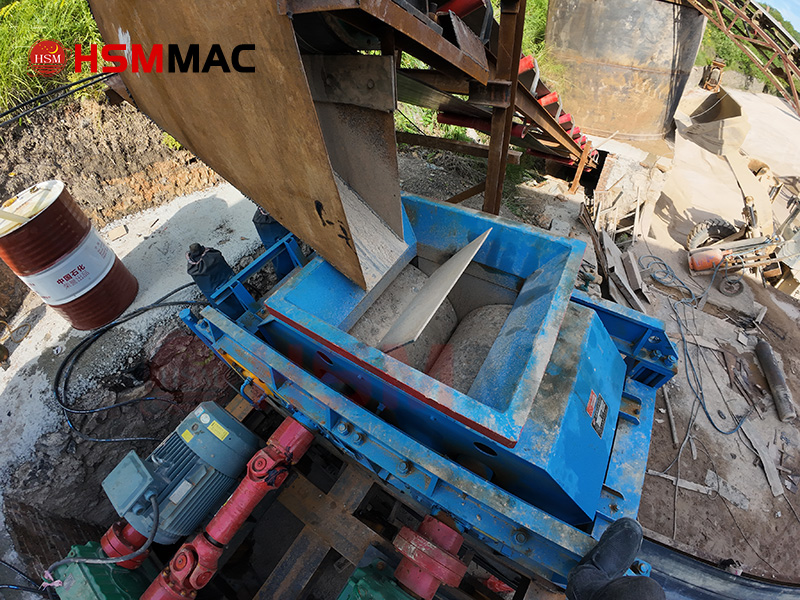

Double Roll Crusher
1. Four Core Factors Determining Roll Shell Lifespan
1. Material Hardness & Abrasiveness
Brittle, low-to-medium hardness feed materials (limestone, coal, glass, calcite) induce minimal surface abrasion, yielding long shell life. Highly abrasive, high-hardness feed (granite, basalt, quartzite, gold ore) causes accelerated surface wear, shortening replacement intervals.
2. Feed Size & Distribution Method
Uniform feeding across the full width of the rollers ensures localized wear is avoided. Frequent feeding of oversize lumps creates severe localized impact, accelerating surface grooving and cracking.
3. Moisture & Clay Content
High moisture levels combined with sticky clay can cause material adhesion on the roller surface, leading to uneven gap spacing, slippage, and irregular localized abrasion.
4. Duty Cycle & Operating Intensity
Plants operating continuously on 24/7 schedules experience cumulative tonnage throughput much faster than intermittent or single-shift operations, shortening the overall calendar lifespan of the shell.
[ 📷 Image Location: On-Site Roll Shell Hardface Rebuilding Process ]
Suggested visuals: Close-up photo showing hardfacing weld overlay being applied to restore a worn double roll surface.
2. Typical Lifespan Ranges & Hardfacing Rebuilds
Under medium-hardness processing conditions, high-alloy wear-resistant roll shells typically last from several months to multiple years depending on total throughput and duty cycles 【Custom Parameters Available】.
Instead of immediately purchasing new replacement shells, worn roll faces can be restored using hardface welding overlay directly on the machine. This “repair rather than replace” capability enables multiple service cycles from a single set of shells, dramatically lowering per-ton consumable expenses over the machine’s lifetime.
3. When to Repair vs. How to Extend Shell Life
| Signs It’s Time to Repair or Replace | Best Practices to Extend Shell Life |
|---|---|
| Increased Output Size: Product becomes oversized or inconsistent due to widened gap. | Control Top Size: Prevent uncrushable tramp iron or oversize rock from entering feed. |
| Visible Surface Grooving: Deep channels, ridges, or micro-cracks on the roller face. | Uniform Distribution: Use distributors to spread material across the entire roll width. |
| Capacity Drop: Throughput drops noticeably as material slips on smooth, worn faces. | Scheduled Hardfacing: Perform overlay welding at targeted wear limits before base metal degrades. |
4. Application-Matched Roll Metallurgy by Huashengming
Matching roll surface metallurgy directly to the physical properties of your raw feed is essential for maximizing ROI. Huashengming offers tailored roll shell materials and surface profiles (smooth, grooved, or tooth-patterned):
- High-Manganese & Alloy Composites: Engineered for extreme toughness under heavy shock loading.
- High-Chromium Cast Irons: Formulated for maximum abrasion resistance against highly quartzose feed materials.
- Material Sample Testing: Send sample rock to HSM’s testing bay to evaluate abrasive index and determine optimal shell specs before purchase.
Evaluate Your Roll Shell Wear Life Today:
Contact Huashengming Heavy Industry to get a customized wear-life estimate based on your feed hardness, discuss on-site hardfacing procedures, or request a free raw material wear analysis.
