Core Aggregate Quality & Equipment Selection Criteria:
- 4 Pillars of Premium Sand: Consistent Particle Size, Cubical/Angular Grain Shape, Controllable Fine Powder Ratio, and Reliable Hourly Tonnage.
- Double Roll Advantages: Inter-particle squeeze compression delivers adjustable discharge gaps, uniform grain structure, low micro-dust generation, and high power savings.
- Multi-Mineral Suitability: High performance across river pebbles, limestone, cobblestones, granite, and silica gravels.
- Streamlined Circuit Integration: Easily forms turnkey circuits:
Feeder → Double Roll Crusher → Screen → Sand Washer.
The quality of manufactured sand directly governs the strength and workability of downstream concrete and mortar products. When sand plants evaluate sand-making machinery, four core performance metrics take priority: predictable sizing, cubical grain shape, controlled fine dust generation, and stable throughput. Utilizing high-pressure inter-particle squeeze crushing, Double Roll Sand Makers provide a highly efficient alternative to traditional high-speed impact crushers—delivering low power consumption, minimal over-grinding, and low wear costs. Huashengming (HSM) supplies ready-to-ship double roll sand makers backed by factory sample trial testing.

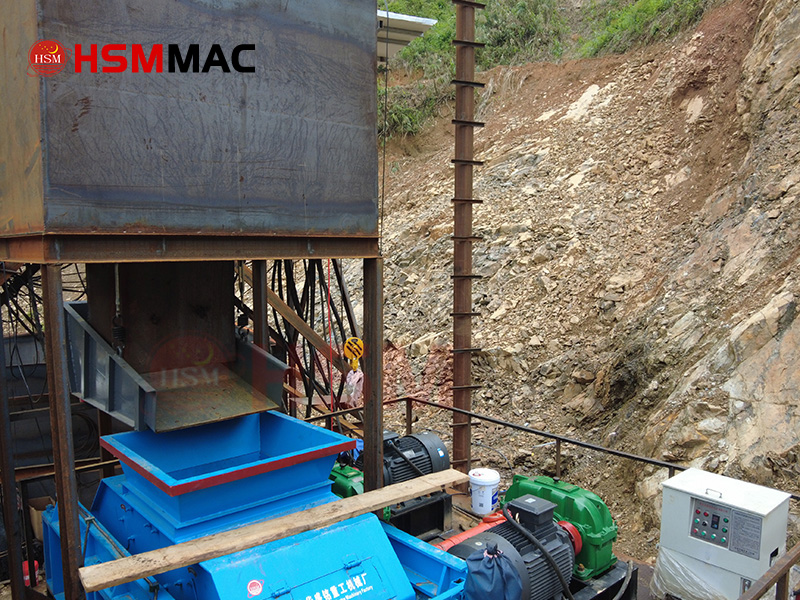

HSM Double Roll Sand Maker
1. What Modern Aggregate Plants Demand from Sand Equipment
To stay competitive in commercial concrete markets, manufactured sand must satisfy four key aggregate grading standards:
• Stable Particle Size Distribution
Fineness modulus must remain consistent across continuous production shifts to prevent concrete batching recalibrations.
• Angular & Cubical Grain Profile
Low needle and flaky particle ratios maximize inter-grain packing density and cement slurry bonding strength.
• Controlled Fine Dust Fines (<75μm Powder)
Excessive fine dust wastes raw material and burdens wet washing circuits, whereas optimal powder fractions enhance mortar workability.
• High Tonnage & Energy Efficiency
Low electrical kWh consumption per ton directly lowers daily operational expenditure, protecting plant profit margins.
2. Core Advantages of Double Roll Sand-Making Technology
- Hydraulic Adjustable Gap Control: Roller clearance gaps adjust rapidly to yield custom sand sizing (0–5mm, 0–3mm) matching specific project gradations.
- Natural Inter-Particle Cleavage Squeezing: Dual counter-rotating rollers force rocks to fracture along natural grain boundaries, producing plump, cubical particles with low flakiness.
- Reduced Over-Grinding & Dust Fines: Unlike high-speed kinetic VSI crushers that shatter rock into runaway dust, slow-speed roll compression minimizes waste fines and lowers sand-washing loads.
- Significant Energy & Power Savings: Direct hydraulic compression eliminates high-RPM rotational air resistance, reducing motor kWh consumption by 30%–50%.
- Long Wear Shell Service Life: High-alloy chromium/manganese roller sleeves offer extended service intervals and support on-site hardface welding rebuilds.
3. Applicable Raw Material & Configuration Matrix
| Material Type | Raw Material Characteristics | Recommended Machine Configuration |
|---|---|---|
| River Pebbles / Pea Gravel | High quartz content, rounded shape, highly abrasive. | High-Chromium Alloy Shells + Hydraulic Tramp Protection |
| Limestone / Calcite | Medium hardness, brittle, excellent natural fracture planes. | Standard High-Manganese Smooth Roller Sleeves |
| Granite / Basalt | High compressive strength, dense, hard to crush. | Heavy-Duty Reinforced Frame + Increased Motor Drive Power 【Custom Parameters Available】 |

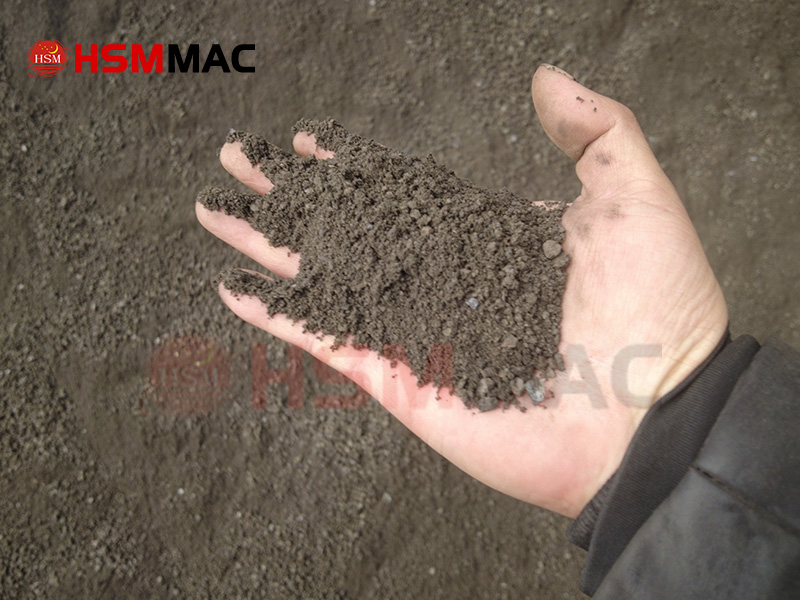

Sand produced by a sand-making machine
4. Standard Sand Plant Circuit Flowsheet
Typical Plant Configuration: Vibrating Feeder → Double Roll Sand Maker → Vibrating Screen → Sand Washer
- Feeding Stage: Regulated vibrating feeder delivers uniform small-spec feed to the crusher mouth, preventing shock overload.
- Crushing Stage: Double Roll Sand Maker performs high-pressure compression to reduce feed down to 0–5mm aggregate sand.
- Screening Stage: High-frequency vibrating screen splits finished sand from oversize material; oversize returns in a closed loop.
- Washing Stage: Wheel or spiral sand washer removes residual clay and mud to yield clean, commercial-grade concrete sand.
Build Your Ideal Sand Production Line Today:
Huashengming Heavy Industry provides complete equipment sets, factory stock availability, and tailored line design 【Custom Parameters Available】.
Contact HSM engineers to schedule a free raw material sample trial run and receive an engineered plant proposal.
