With natural sand resources becoming increasingly scarce, manufactured quartz sand has become an essential raw material for the glass, ceramics, foundry, and building materials industries. However, quartz stone is hard and highly abrasive, presenting two long-standing challenges in sand production: excessive fines resulting in poor product gradation, and rapid equipment wear that drives up production costs per ton. The Hua Sheng Ming quartz sand making roll crusher is designed specifically to address these real-world problems.

quartz sand making roll crusher

Crushing Isn’t About “The Finer, The Better”

Many users mistakenly believe that sand making means “smashing the stone as fine as possible,” only to end up with excessive fines that not only reduce product value but also compromise downstream performance. The Hua Sheng Ming roll crusher uses inter-particle crushing—two rollers apply sustained compressive force to the material, causing quartz stone to naturally separate along mineral grain boundaries, rather than being shattered into powder by impact hammers. The direct benefits are:

Tighter particle size distribution, with significantly lower -200 mesh fines compared to impact crushing;

Cubic grain shape with sharp edges;

Stable operation with minimal adjustment, suitable for continuous long-hour production.

Savings Are What Ultimately Drive Profit

The largest operating expense in quartz sand production is wear parts replacement. With traditional hammer crushers, hammers often need replacement every few days, causing frequent downtime, high labor costs, and serious disruption to production schedules.

The roll shell of the Hua Sheng Ming roll crusher is manufactured using Hua Sheng Ming’s proprietary formulation and process, delivering high working-layer hardness and abrasion resistance while maintaining core toughness to withstand impact. In actual quartz sand processing, the roll shell replacement interval is significantly extended—a clear advantage over impact-type equipment that requires hammer replacement every few days. Over the long term, the savings in wear parts replacement and downtime losses are substantial.

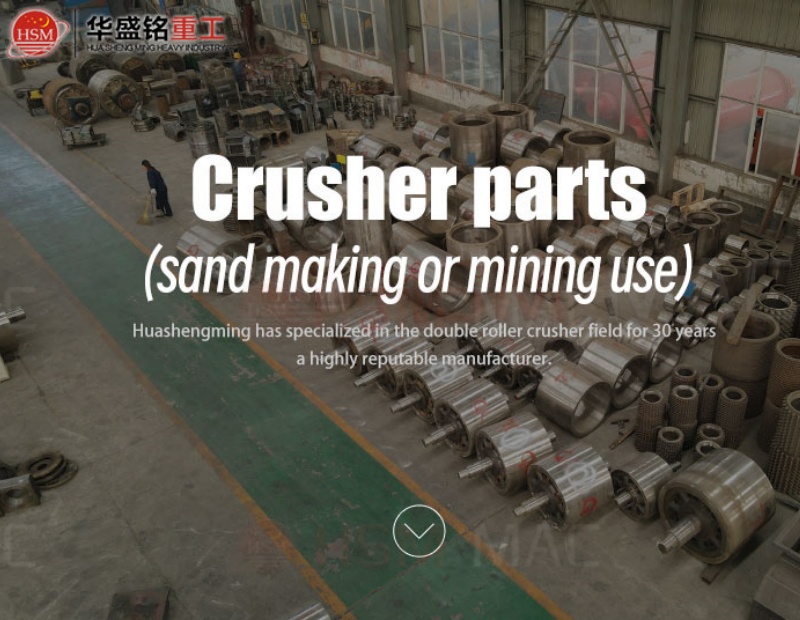

Quartz sand roll crusher roll shell

One Machine, Multiple Applications

Quartz stone from different sources varies significantly in hardness. The Hua Sheng Ming roll crusher is equipped with a hydraulic adjustment system, allowing operators to adjust the roll gap online without stopping the machine—producing everything from fine manufactured sand (approximately 50 mesh, 0.3mm) to coarse sand or fine gravel (20mm)—without the need for screen or hammer changes.

When tramp iron or other unbreakable material accidentally enters the crushing chamber, the hydraulic system automatically retracts to increase the gap, discharges the object, and then resets—effectively preventing roll shell cracking and bearing damage, and reducing unscheduled downtime.

Conclusion

Quartz sand making is not about crushing “as fine as possible,” but about achieving controlled particle size, controlled costs, and reliable operation. The Hua Sheng Ming roll crusher replaces “impact” with “compression,” offering a more economical and stable path to quartz sand production. If you are struggling with excessive fines or rapid roll shell wear in your quartz sand making process, contact Hua Sheng Ming to arrange a material test—let real data speak for itself.
