Direct Answer: It depends on the machine model and configuration. Standard spring-loaded double roll crushers have limited relief travel and are vulnerable to roller denting, shell chipping, or bearing damage when metal enters. In contrast, Huashengming Hydraulic Double Roll Crushers feature an automated hydraulic tramp overload system that expands the roll gap instantly to safely discharge uncrushable objects without stopping production.

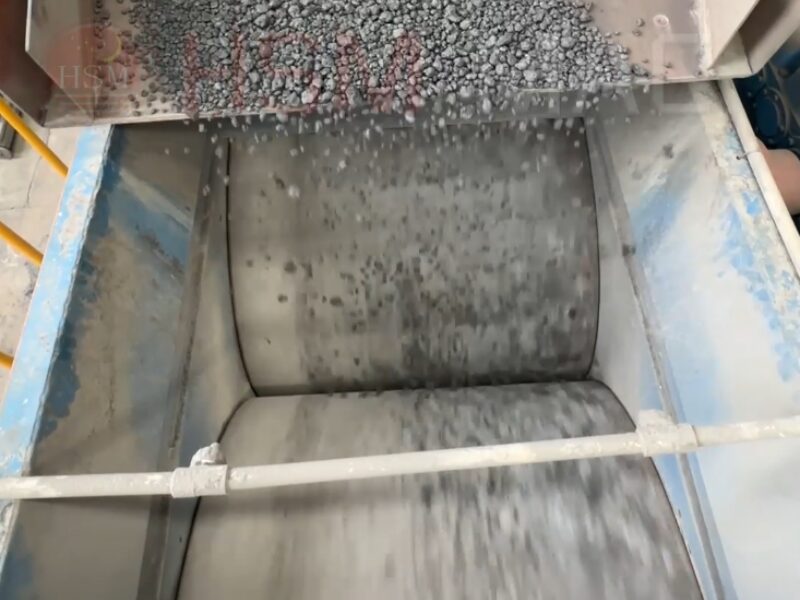

Double Roll Crusher
Mechanical vs. Hydraulic Response to Tramp Metal
| Machine Type | Action Upon Tramp Iron Entry | Operational Impact & Risk |
|---|---|---|
| Standard Spring-Loaded Crusher | Mechanical springs compress slightly, but buffer stroke is limited. Foreign objects easily jam in the crushing chamber. | High risk of roller skin gouging, alloy chipping, shaft bending, and severe bearing or frame damage. Requires manual cleanout and downtime. |
| Huashengming Hydraulic Roll Crusher | Hydraulic pressure sensors detect overload instantly, rapid-bleeding pressure to open the roll gap and release metal. | Core components and roller shells are fully protected from shock loads. Gap resets automatically post-passage for continuous operation. |

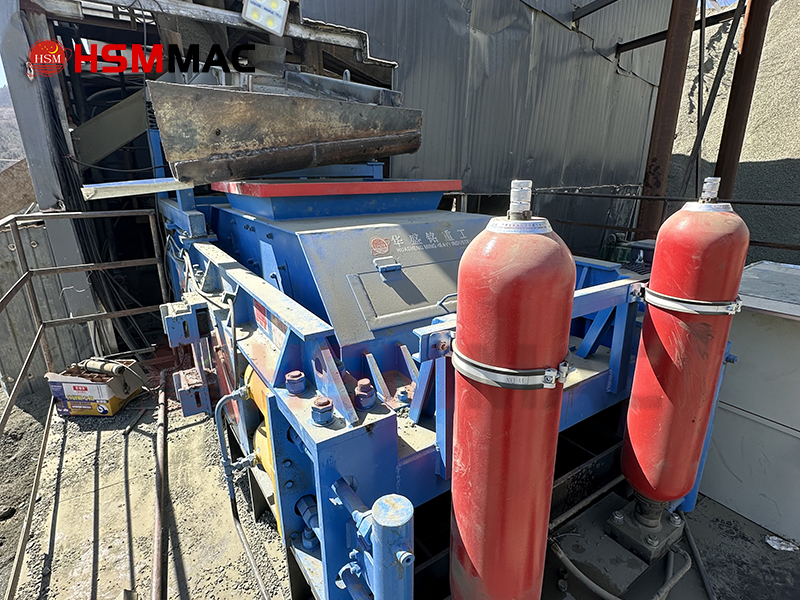

Huashengming Hydraulic Double Roll Crusher
Best Practices for Preventive Plant Operation
- Install Upstream Magnetic Separators: While hydraulic relief systems provide excellent emergency defense, they should be treated as secondary protection. Installing self-cleaning cross-belt magnets or suspended magnetic drums on the main feed conveyor captures tramp steel before it enters the crusher.
- Implement Pre-Screening: Remove non-magnetic debris, oversized boulders, and trash materials prior to the crusher inlet to reduce overall mechanical stress and maintain consistent feed flow.
- Regular Hydraulic Calibration: Periodically check hydraulic fluid levels and relief valve settings to ensure millisecond-level responsiveness during unexpected metal entry.
Summary: Upgrading to a hydraulic double roll crusher safeguards your plant against costly structural damage from tramp metal. Combining automated hydraulic protection with an upstream magnetic separator ensures maximum uptime, low wear costs, and reliable continuous crushing.
