Magnetite Pre-Grinding Efficiency Upgrade via High Pressure Grinding Rolls (HPGR)
How a high-capacity iron ore beneficiation plant integrated 250KW×2 HPGR technology to shatter tough magnetite matrices, bypass ball mill bottlenecks, and cut energy bills.
Projec……
Magnetite Pre-Grinding Efficiency Upgrade via High Pressure Grinding Rolls (HPGR)
How a high-capacity iron ore beneficiation plant integrated 250KW×2 HPGR technology to shatter tough magnetite matrices, bypass ball mill bottlenecks, and cut energy bills.
Project Background & Hard Rock Challenges
A large-scale iron ore processing facility was facing severe operational bottlenecks when handling highly abrasive, high-hardness magnetite ore. The plant relied on traditional dynamic impact and secondary crushing machinery prior to the ball milling stage. This setup generated severe financial and technical liabilities:
• Skyrocketing Energy Consumption: Dynamic impact systems drew massive electricity loads while failing to micro-fracture the tough magnetite crystals efficiently.
• Poor Downstream Milling Feed: The crushed magnetite lacked uniform particle size distributions, causing the downstream ball mills to overwork, which crippled overall concentrator throughput times.
• Rapid Maintenance Wear and Tear: High abrasiveness decimated standard crushing liners within short cycles, driving up auxiliary grinding media costs and triggering frequent emergency maintenance line shutdowns.
The Solution: Static Inter-Particle Pressure Extrusion
High Pressure Grinding Rolls (HPGR)

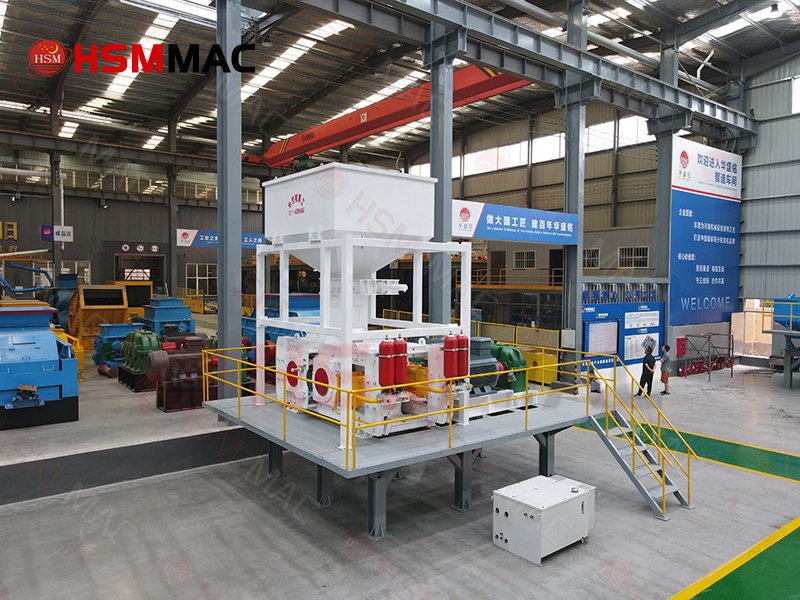

To resolve these compounding issues, the mine engineers restructured the fine crushing section by deploying our G1280 High Pressure Grinding Roll (HPGR) circuit. Operating under full-bin feeding with intelligent hydraulic adjustments and a one-click start sequence, the magnetite ore is processed via a highly advanced mechanism:
• Dual Counter-Rotating Solid Rollers
The G1280 system channels raw magnetite through two counter-rotating rollers engineered with wear-resistant centrifugal casting liners. Materials are subjected to massive, continuous hydraulic pressure, causing intense inter-particle compression. The rock fractures natively along its interior crystalline grains, creating micro-cracks that exponentially ease downstream milling speeds.
• Premium Wear-Resistant Roller Skins
Unlike dynamic hammer setups that erode instantly against magnetite, the HPGR liners are engineered for extreme stability. Even when remaining thickness wears down as low as 1 cm, the equipment maintains a 90% roller liner utilization rate, eliminating weekly wear-part replacements.
Verified Site Performance Metrics
Following full integration of the G1280 HPGR unit into the magnetite processing plant, the mining group documented the following validated upgrades:
• 40% Drop in Energy Consumption: Shifting to static hydraulic extrusion slashed site electricity consumption by 40% compared to traditional secondary crushing lines.
• 85% Finished Product Yield: The continuous flow configuration surged final mill-ready feed yields up to 85% with highly uniform particle sizes.
• Stable 180 – 200 t/h Throughput: Powered by dual 250KW motors, the line successfully fulfills continuous, large-scale processing targets without interruption.
• Zero Auxiliary Media Costs: The system completely eliminates the need for additional grinding media during fine reduction phases, massively relieving the firm’s maintenance budget burdens.
• Dust & Noise Suppression: The fully optimized closed processing environment delivers a clean, low-dust workspace in strict compliance with green industrial mandates.
Product Model
Roller Size (D×W mm)
Capacity (t/h)
Motor Power (KW)
G8030
800 × 300
60 – 90 t/h
90KW × 2
G1060
1000 × 600
130 – 150 t/h
160KW × 2
G1280 (Featured)
1200 × 800
180 – 200 t/h
250KW × 2
G1410
1400 × 1000
220 – 300 t/h
315KW × 2
Maximize Your Ore Processing Profit Curves
Stop sacrificing mill capacity to rapid wear parts and massive power overheads. Contact our mineral processing engineering desk now to receive a customized HPGR plant blueprint tailored to your hourly target tonnage.
