What Are the Advantages of Coal Gangue Double Tooth Roll Crusher? Crushing Solutions

Coal gangue is a solid waste generated during coal mining and washing. Long-term stockpiling pollutes the environment. Today, coal gangue can be used for sand making, producing building materials, extracting useful minerals, or as fuel for power plants, giving it high resource utilization value. However, in the crushing process, three major pain points commonly exist: wet materials cause clogging, forcing frequent shutdowns for cleaning with ordinary crushers; traditional equipment causes severe over-crushing, generating excessive fines that waste energy and increase dust removal burden; hard particles lead to rapid tooth plate wear, resulting in high maintenance costs. To address these issues, HSM introduces a coal gangue dedicated double tooth roll crusher, adopting a low-speed, high-torque shearing crushing principle to provide an efficient solution.

I. Solution Overview

Coal gangue double tooth roll crusher

The HSM coal gangue double tooth roll crusher uses a low-speed, high-torque double roll structure, utilizing combined forces of shearing, tensile, and extrusion to break materials, rather than pure impact.This model has been widely used in coal gangue sand making, coal gangue crushing for power plant fluidized bed boilers, and extracting kaolin or aluminum-silicon powder from coal gangue.

Core Working Principle

Material enters the crushing chamber from above, and the two counter-rotating rolls bite the material. With specially designed wear-resistant tooth plates on the roll surfaces, the material cracks along natural fissures under shearing and tensile forces, rather than being violently impacted into powder. Particles that have already reached the target size directly fall through the roll gap without being re-crushed, significantly reducing the over-crushing rate.

Key Technical Features

Screening-crushing integrated design: The crushing chamber has a pre-screening function, allowing qualified particles to discharge in time, avoiding re-crushing and improving yield.

Anti-clogging structure: The double rolls force discharge, combined with self-cleaning tooth profile, preventing sticking and clogging even when handling coal gangue with high moisture content.

Hydraulic output size adjustment: The roll gap can be quickly adjusted via the hydraulic system to meet different product size requirements, offering easy operation.

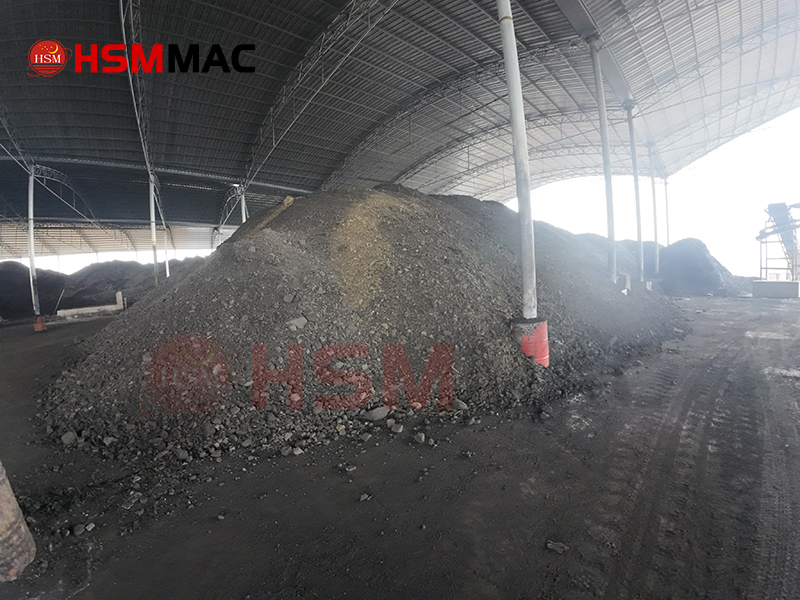

Coal gangue raw material

Multiple overload protection: When encountering uncrushable material (such as iron pieces or extra-hard rock), the equipment automatically reverses or stops, protecting core components from damage.

Long-life wear-resistant tooth plates: Made of high-chromium alloy or hardfacing wear layer, the tooth plates have a much longer service life than ordinary cast steel teeth, reducing replacement frequency.

II. Applicable Scenarios

This solution is suitable for various coal gangue resource utilization processes. In coal gangue sand making, the double tooth roll crusher works with screening and washing equipment to produce manufactured sand. In power plant fuel preparation, it can crush coal gangue to the size range suitable for fluidized bed boilers. When extracting useful minerals, two-stage crushing combined with magnetic separation, jigging and other processes can recover pyrite, kaolin, etc. In addition, crushed coal gangue can be mixed with clay and shale for brick making or producing lightweight aggregates.

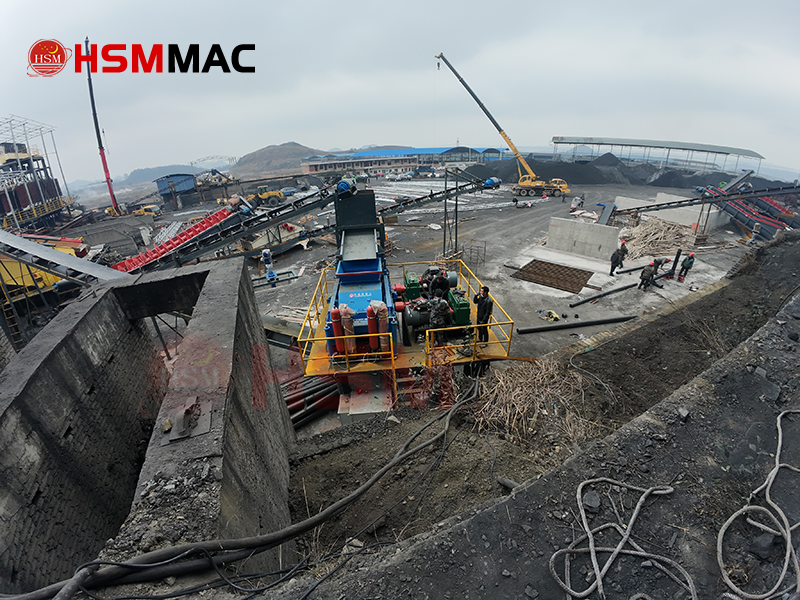

Coal gangue double tooth roll crusher at crushing site

III. Solution Advantages

The HSM coal gangue double tooth roll crusher produces good particle shape with low over-crushing rate, making it more suitable for downstream utilization. The equipment runs stably with low failure rate; the low-speed design extends bearing and gearbox life. Energy saving effect is significant, with greatly reduced unit energy consumption. Maintenance is convenient, thanks to the split structure of tooth plates that allows quick replacement. The equipment is also environmentally friendly, with a sealed crushing chamber reducing dust emission, and low noise operation meeting mining area environmental requirements.

IV.  Contact Us

For more details about the coal gangue double tooth roll crusher or to obtain customized suggestions for your project, please contact HSM Heavy Machinery.

Website: www.hsmcrusher.com
Phone: +86 18703839693
You can also contact us via the website message or online chat, and we will reply as soon as possible.

HSM – Making coal gangue crushing simpler and resource utilization more efficient.
