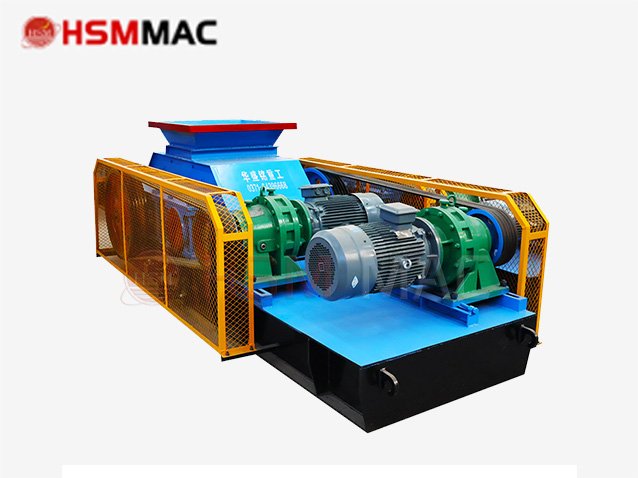

Small Spring Roller Crusher

Small Spring Roller Crusher

Small Spring Roller Crusher The Most Cost-Effective Entry-Level Solution for Small Sand Plants 1. Product Introduction The HSM Small Spring Roller Crusher is specifically designed for startups a……

Feed size: ≤25-35mm
Productive capacity:2-35t/h
Application:River pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, lapis lazuli, mountain stone, limestone, weathered sand, pyroxene, granite, basalt, etc.
Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

Small Spring Roller Crusher

The Most Cost-Effective Entry-Level Solution for Small Sand Plants

1. Product Introduction

The HSM Small Spring Roller Crusher is specifically designed for startups and small-scale building material factories. It utilizes high-strength springs to provide stable crushing pressure, balancing performance with an exceptionally low investment threshold. Whether you are processing river pebbles, limestone, or coal gangue, this unit delivers premium cubic sand with minimal dust.

As a Source Factory, we provide these compact units at “Wholesale Prices,” ensuring you get the highest ROI (Return on Investment) for your new venture.

Low Entry Cost

Perfect for newcomers with limited budgets. Controlled initial investment without sacrificing sand quality.

Flexible Adjustment

Simply adjust the spring bolts to change the discharge gap, achieving output sizes from 1mm to 10mm.

Compact Design

Small footprint and light weight make it easy to install in limited spaces or move between sites.

Easy Maintenance

Simple mechanical structure. No complex training required for daily operation and part replacement.

2. Technical Parameters

Model	Roll Size (mm)	Max Feed (mm)	Output (mm)	Capacity (t/h)	Power (kW)
2PG400x250	φ400×250	≤25	2-8	2 – 10	2×5.5
2PG610x400	φ610×400	≤30	2-10	10 – 20	2×11
2PG750x500	φ750×500	≤35	2-10	20 – 35	2×18.5

Start Your Journey with HSM Reliability

Even our smallest models inherit the Proprietary Alloy Roller Skins used in our heavy-duty machines. You get industrial-grade durability at a startup-friendly price. We support you from 5 TPH to 450 TPH as your business grows.

Looking for a Factory Price on Small Roller Crushers?

Get A Quick Quote Now

Inquiry

We respond quickly to any questions, inquiries, needs and feedback. If you have business needs or questions about our products, feel free to contact us.
