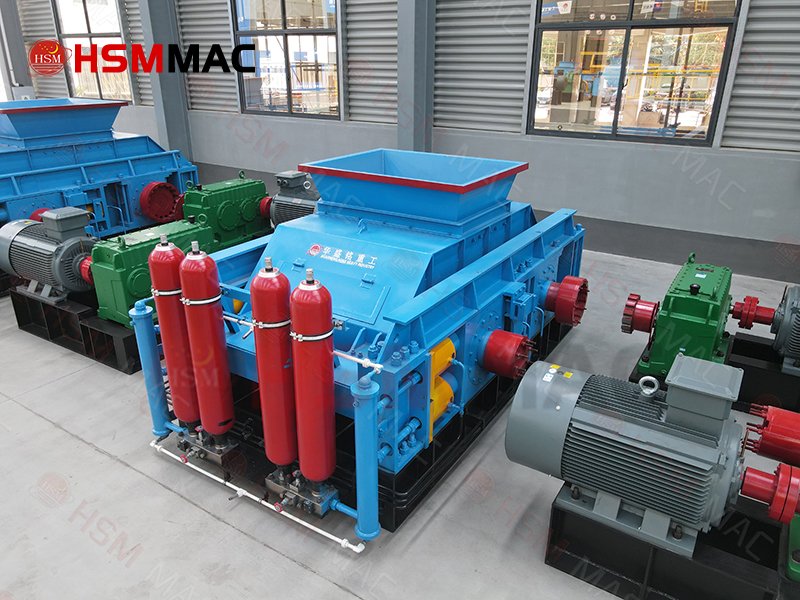

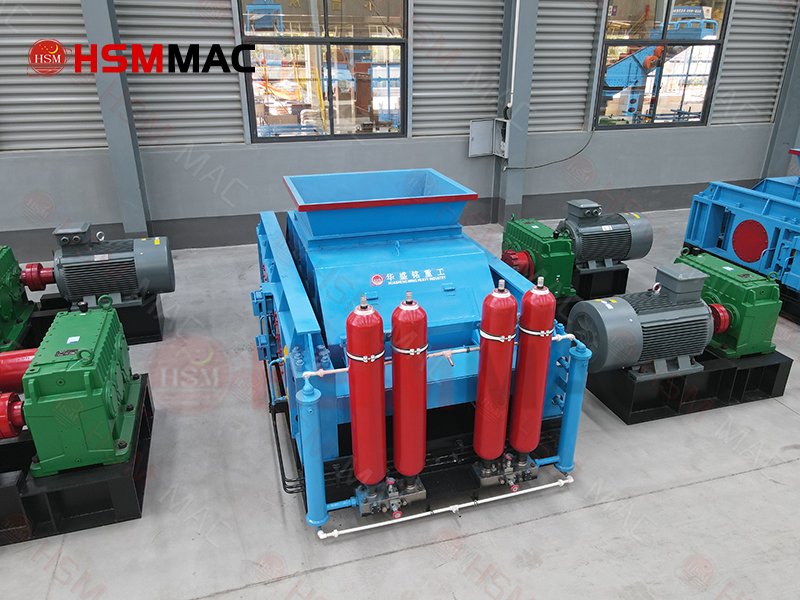

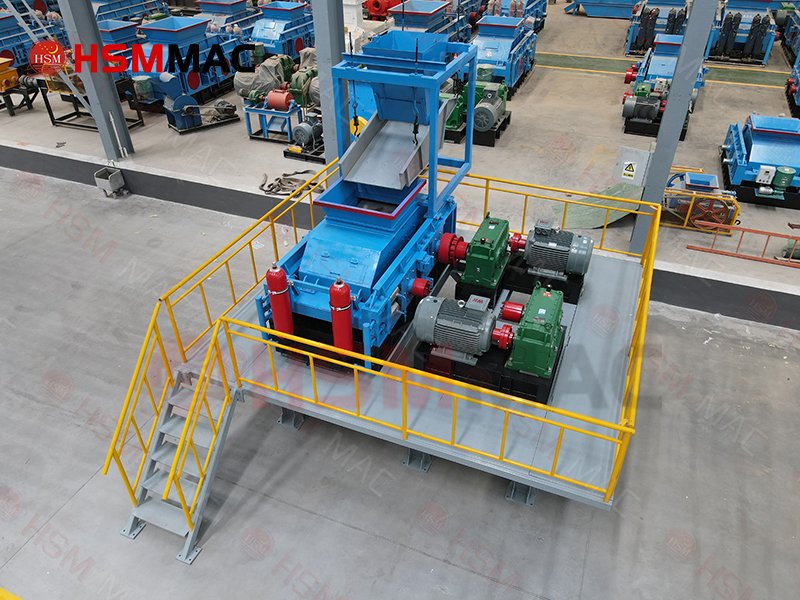

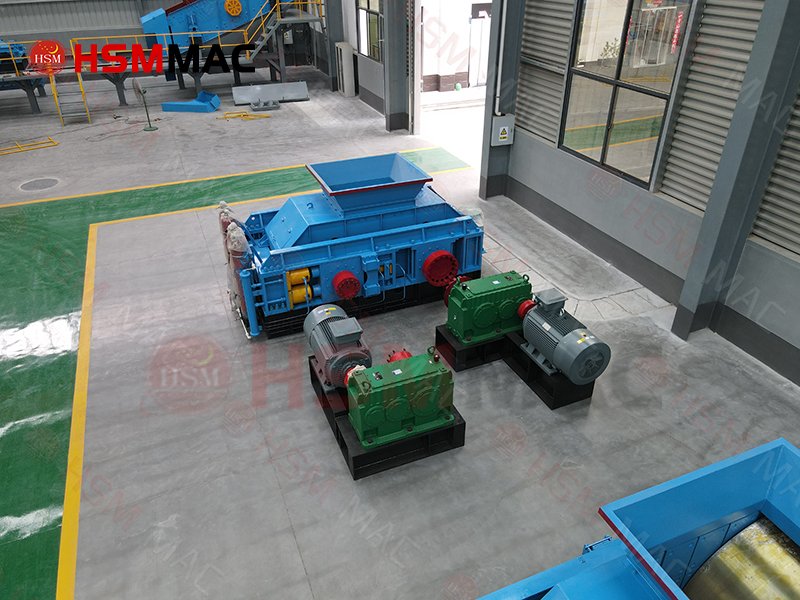

Large Hydraulic Double Roller Crusher

Large Hydraulic Double Roller Crusher Advanced Electromechanical-Hydraulic Integration for Industrial Excellence. Product Overview The HSM Large Hydraulic Double Roller Crusher is a high-perform……

Feed size: 25-100mm
Productive capacity:5-450t/h
Application:River pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt
Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

Large Hydraulic Double Roller Crusher

Advanced Electromechanical-Hydraulic Integration for Industrial Excellence.

Product Overview

The HSM Large Hydraulic Double Roller Crusher is a high-performance device designed for large-scale operations in mining, metallurgy, and building waste recycling. Using a static pressure extrusion principle, it ensures uniform crushing of hard materials like iron ore, quartz, and limestone while maintaining low noise and minimal dust emission.

Versatile Application Fields

Mining & Minerals: Iron, gold, and copper ore fine crushing.

Construction: High-quality manufactured sand for highways & dams.

Recycling: Concrete, brick fragments, and tailings regeneration.

Metallurgy: Steel slag, furnace slag, and quicklime processing.

Technical Parameters

Model	Roll Dim. (mm)	Feed (mm)	Capacity (t/h)	Power (KW)
2PGY1000×1000	φ1000×1000	≤60	80-100	2×(75-90)
2PGY1500×1200	φ1500×1200	≤120	150-200	2×(132-160)
2PGY2000×1200	φ2000×1200	≤120	300-400	2×(315-355)

Sustainable & Reliable Crushing Solutions

Our alloy roller skins last 3-5 times longer than competition.
