High Pressure Grinding Roll (HPGR) crushing solution Crushing Solutions

ADVANCED COMMINUTION TECHNOLOGY

High Pressure Grinding Roll (HPGR) – The Ultimate Fine Crushing Solution

Next-Generation Energy-Saving & High-Efficiency Crushing System for Hard Rock and Ore

The High Pressure Grinding Roll (HPGR) has emerged as the leading equipment for modern mineral processing and aggregates production, combining exceptional energy efficiency with massive throughput capacity. Widely adopted in mining, cement, and sand making industries worldwide, HPGR delivers significantly lower energy consumption and higher operational stability compared to conventional cone crushers, ball mills, or impact crushers. Thanks to its robust design and user-friendly operation, HPGR has become the preferred choice for forward-thinking enterprises aiming to reduce costs and boost productivity.

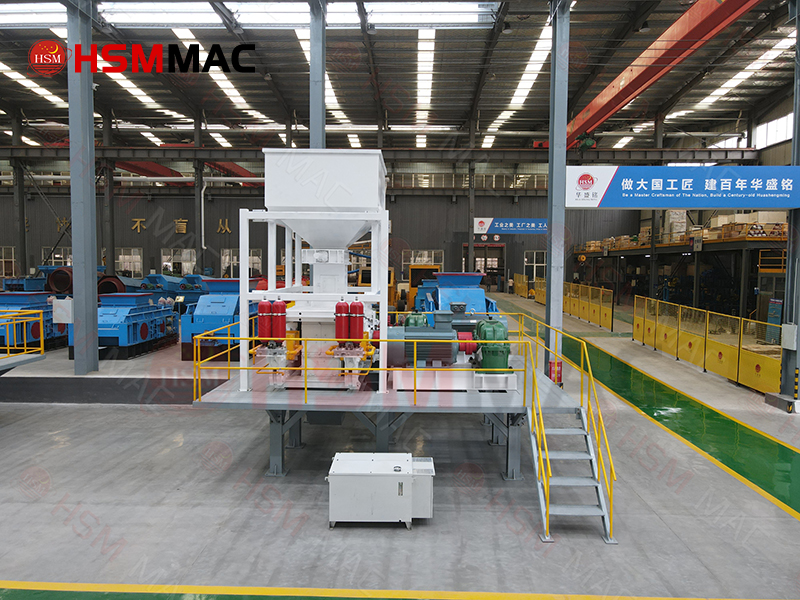

High Pressure Grinding Roll (HPGR) in workshop – actual shot

Why Choose Our HPGR Solution?

⚡ Substantial Energy Reduction
Saves 25% to 35% of energy compared to traditional grinding circuits, directly lowering daily operating expenses.

🚀 High Throughput Capacity
Handles large feed volumes continuously, enabling 24/7 operation for large-scale projects.

💎 Superior Product Quality
Produces uniform, cubical particles with minimal fines, ideal for downstream ball milling or direct use as manufactured sand.

🔧 Low Maintenance Cost
No grinding media required. Roll shells are field-repairable via hardfacing, drastically reducing spare parts consumption.

🌱 Eco-Friendly Operation
Low noise levels combined with sealed dust control ensure compliance with global environmental standards.

Technical Breakthroughs & Features

Engineered specifically for hard rock and abrasive ores, our HPGR integrates extreme durability with advanced features:

Intelligent Hydraulic Control: Supports automatic roll gap adjustment and tramp iron protection. One-click start with responsive pressure regulation.
All-Weather Adaptability: High-strength roll frame with wear-resistant studded or hardfaced roll surfaces. Handles dry, wet, and sticky materials without clogging.
Extended Roll Life: Roll shells maintain excellent performance over a long operating period. On‑site rebuilding further extends total service life.

Optimized Particle Size Distribution: Increases finished product yield while effectively reducing ultrafine powder content, significantly improving product grade.

How It Works: Interparticle Bed Crushing

The HPGR operates using two counter-rotating rolls made of ultra-high-strength, wear-resistant alloy. Material is fed evenly into the crushing gap and subjected to extreme hydraulic pressure (up to 6 MPa). Instead of single-particle impact, particles crush each other within a densely packed bed – this is interparticle crushing. The result is efficient size reduction with micro-crack generation, improving downstream grinding while intelligent sensors ensure long-term stability without manual intervention.

Global Industry Applications

⛏ Mining & Ore Beneficiation
Handles variable ore hardness effectively. Processes iron ore, copper ore, gold ore, diamond ores, and molybdenum ore to optimize mill feed liberation.

🏗 Aggregates & Manufactured Sand
Produces premium cubical sand and gravel aggregates that meet strict construction standards for concrete and road base.

🏭 Cement & Industrial Minerals
Provides efficient pre-grinding for cement raw materials, clinker, limestone, and slag, increasing throughput while maintaining product stability.

Standard Technical Specifications

Product Model	Roller Dia. × Width (mm)	Capacity (t/h)	Motor Power (KW)
G8030	800 × 300	60 – 90	90KW × 2
G1060	1000 × 600	130 – 150	160KW × 2
G1280	1200 × 800	180 – 200	250KW × 2
G1410	1400 × 1000	222 – 300	315KW × 2

Get a Tailored HPGR Solution for Your Plant

Partnering with us means achieving lower energy consumption, higher capacity, and better product quality simultaneously. Contact our engineers today for a customized configuration blueprint.
