Four Roller Crusher

Four Roller Crusher

Four Roller Crusher Two-Stage Graded Crushing: One-Time Forming Without Clogging. The Ultimate Fine Crushing Solution The HSM Four Roller Crusher is a high-efficiency power plant for medium an……

Feed size: ≤90mm
Productive capacity:2-500t/h
Application:clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.
Application scope: cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

Four Roller Crusher

Two-Stage Graded Crushing: One-Time Forming Without Clogging.

The Ultimate Fine Crushing Solution

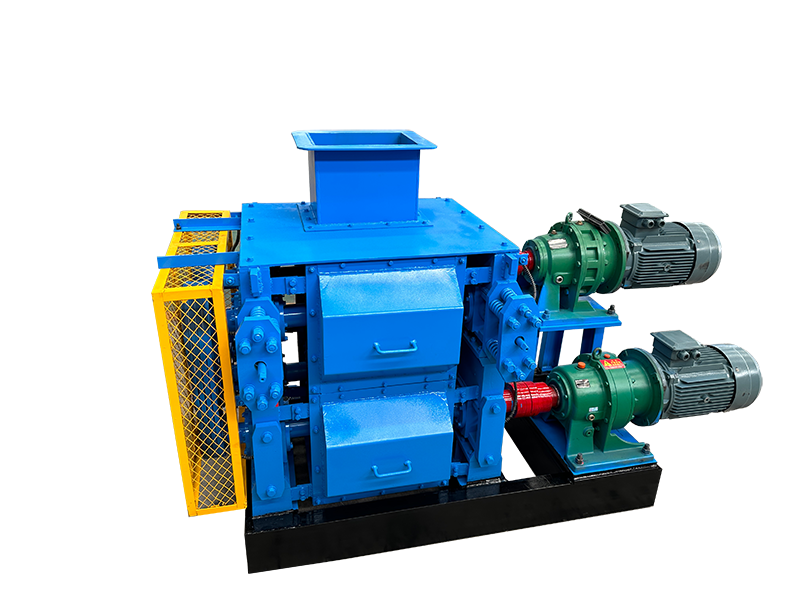

The HSM Four Roller Crusher is a high-efficiency power plant for medium and fine crushing operations. By integrating two stages of crushing into a single unit, it eliminates the need for additional screening equipment. The upper rollers handle coarse reduction, while the lower rollers ensure a fine, uniform finish. This screen-less design fundamentally solves the problem of clogging, even with wet materials up to 30% moisture content.

Core Advantages

Two-Stage Integration: Coarse & fine crushing in one pass.

Anti-Clogging: Handles viscous & wet materials (≤30% moisture).

Alloy Rollers: High-chromium manganese steel for extreme wear life.

Adjustable Output: Precise control from 0.1mm to 20mm.

Technical Specifications

Model	Feed Size (mm)	Discharge (mm)	Capacity (t/h)	Power (KW)
4PG0605PT	< 40	0.1 – 15	5 – 60	22-30
4PG0806PT	< 40	0.1 – 20	8 – 90	30-37
4PG1080PT(Y)	< 60	0.1 – 20	20 – 180	45-55
4PG1210PT(Y)	< 80	0.1 – 30	30 – 220	75-90

Unlock Efficient Industrial Crushing

Speak with HSM engineers for a customized configuration and factory price quote.
