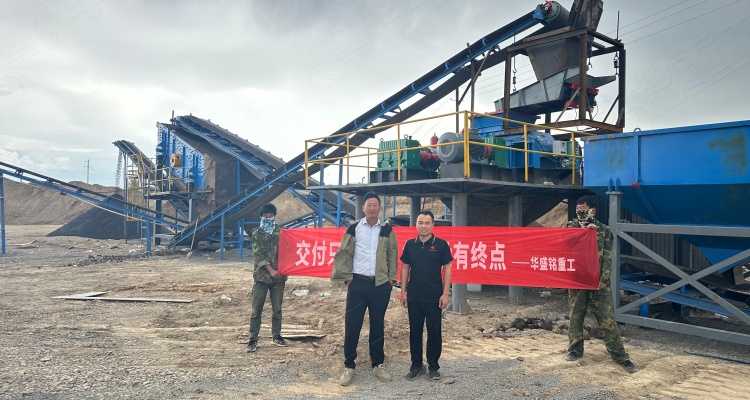

Double-roll sand making machine operating in a Zhenjiang limestone processing plant producing 1–5 mm manufactured sand.
Working Principle & Limestone Adaptability
The double-roll sand maker crushes material using two counter-rotating rollers through a combination of compression and shear forces. Compared to high-impact VSI or hammer crushers, the double-roll crusher operates under a gentler crushing mechanism, effectively controlling over-grinding and significantly reducing stone powder generation.
Why This Matters for Limestone Processing:
Limestone possesses moderate hardness (Mohs hardness ~3–4) but high brittleness. High-speed impact crushers generate excess micro-powder (<0.075 mm), which wastes raw rock and increases dust collection burdens. By adjusting roller gap settings and rotational speed, double-roll crushers precisely confine output size to the 1–5 mm target window, meeting building sand standards for fineness modulus and powder control.
Field Application Performance in Zhenjiang Plants
In local production bases, two-stage double-roll systems processing 5–20 mm primary-crushed limestone have demonstrated strong performance metrics:
Close-up of 1–5 mm cubical limestone manufactured sand with low fines content.
| Performance Indicator | Double-Roll Sand Maker Performance |
|---|---|
| Particle Shape | Cubical shape with moderate surface roughness, improving concrete bonding strength and workability. |
| Sand Yield Rate | Significantly higher 1–5 mm yield rate compared to vertical shaft impact (VSI) crushers. |
| Stone Powder Control | Sub-0.075 mm fines content strictly controlled below 5%, well beneath national standard limits. |
Energy Efficiency & Environmental Benefits
- Low Energy Consumption: Featuring a compact layout without high-speed rotating impellers, power draw is significantly lower than impact-type equipment of identical capacity.
- Low Noise & Dust: Operating smoothly at low speeds generates reduced noise and minimal dust. Paired with enclosed conveyors and pulse dust collectors, plants meet environmental compliance standards.
- Extended Component Life: High-manganese steel or composite alloy roller shells offer long service life and quick replacement, reducing downtime and maintenance costs.
Regional Upgrades for Zhenjiang Limestone

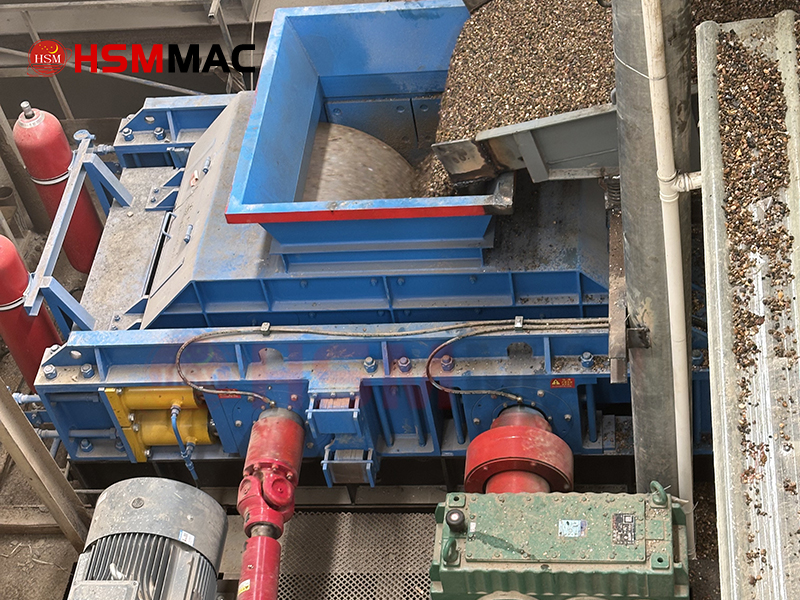

Wear-resistant alloy composite roller shells and automated hydraulic gap adjustment panel.
To address limestone’s abrasive characteristics, equipment manufacturers serving the Zhenjiang market have implemented localized technical enhancements:
- Wear-Resistant Composite Rollers: Hardfacing alloy shells withstand long-term wear and maintain surface flatness.
- Automated Gap Adjustment: Hydraulic systems allow non-stop, real-time roller gap calibration to ensure constant 1–5 mm particle sizing.
- Variable Frequency Drive (VFD): Speed control optimizes linear speed according to changing feed moisture and hardness.
Summary: Combining high 1–5 mm sand yields, controlled fines, lower power consumption, and intelligent automation, double-roll sand makers provide aggregate producers in Zhenjiang with a reliable, eco-friendly, and profitable sand-making solution.
