Integrated Four-Roll Crusher

Integrated Four-Roll Crusher

Heavy-Duty Crushing Integrated Four-Roll Crusher “One-Time Forming” — Integrated Medium & Fine Crushing Solution. The Ultimate Industrial Crushing Guardian The **HSM Four-Roll C……

Feed size: ≤90mm
Productive capacity:2-500t/h
Application:clay shale, chalk, brick, slag, clinker, feldspar, coke etc. It applies to cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.
Application scope: cement chemical industry, electric power, metallurgy, construction, refractory and other industrial department including limestone, slag, coke, steel slag etc.

Heavy-Duty Crushing

Integrated Four-Roll Crusher

“One-Time Forming” — Integrated Medium & Fine Crushing Solution.

The Ultimate Industrial Crushing Guardian

The **HSM Four-Roll Crusher** is a high-efficiency powerhouse designed to consolidate production lines. Featuring a unique tiered roller design, it handles materials with compressive strengths up to 300MPa. Its screen-free architecture ensures that even wet, viscous materials (up to 30% moisture) pass through without clogging, providing a stable, 24/7 output for coal, mining, and chemical industries.

Performance Highlights

Two-Stage Integration: Coarse & Fine crushing in one pass.

Anti-Clogging: Screenless design for wet materials.

Wear Resistance: High-chromium manganese alloy rollers.

Precision Output: Adjustable from 0.1mm to 30mm.

Technical Parameters

Model	Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (kW)
4PG0605PT	< 40	0.1 – 15	5 – 60	22 – 30
4PG0806PT	< 40	0.1 – 20	8 – 90	30 – 37
4PG1080PT(Y)	< 60	0.1 – 20	20 – 180	45 – 55
4PG1210PT(Y)	< 80	0.1 – 30	30 – 220	75 – 90

Optimize Your Crushing Process Today

Consolidate your production line and slash maintenance costs with HSM’s tiered roller technology.

Request a Custom Solution

Inquiry

We respond quickly to any questions, inquiries, needs and feedback. If you have business needs or questions about our products, feel free to contact us.

hot products

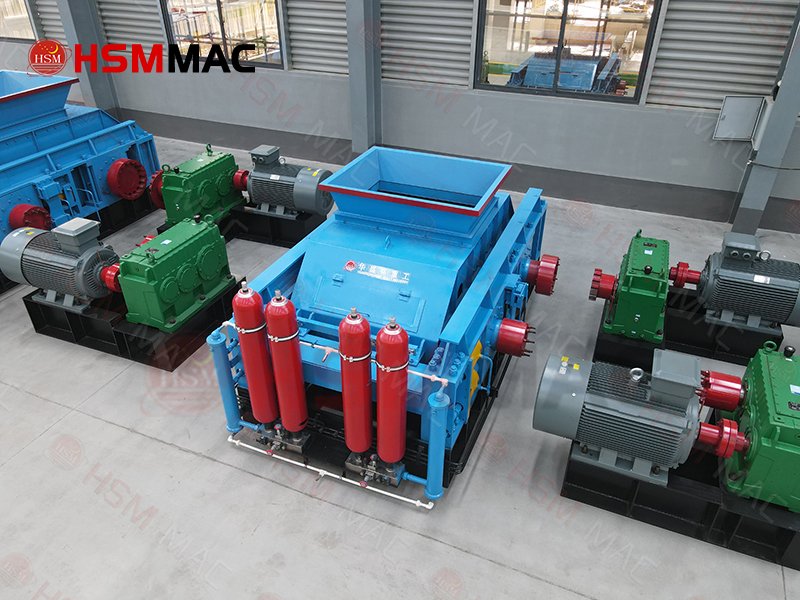

Large Hydraulic Double Roller Crusher

Large Hydraulic Double Roller Crusher Advanced Electromechanical-Hydraulic Integration for Indus……

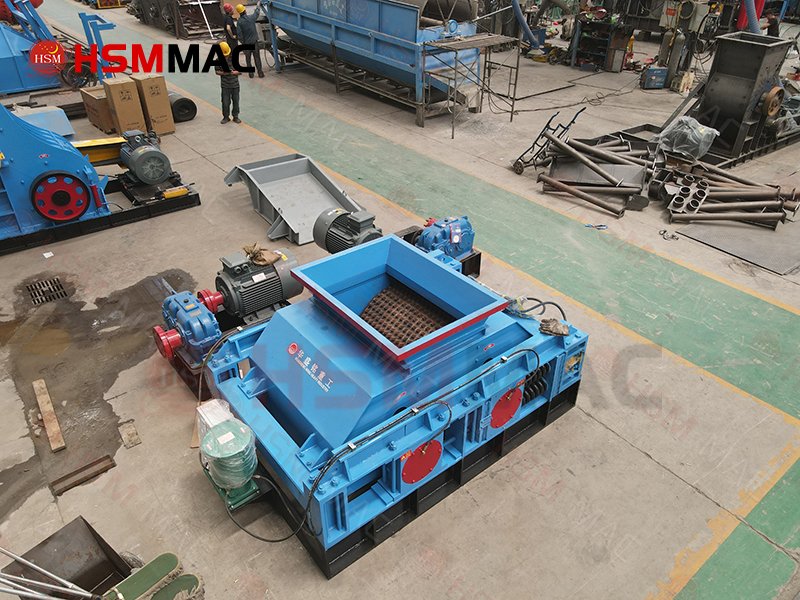

Heavy-Duty Hydraulic Double Toothed Roller Crusher
