Coal slag Crushing Solutions

Coal slag is the most common solid waste material from power plants and industrial boilers. In resource utilization applications such as brick making, cement blending, and subbase fill, the crushing process directly determines final product quality. Huashengming roll crusher uses a low-speed compression crushing principle, adapted to the medium hardness and high brittleness of coal slag, delivering distinct advantages including low over-crushing rate, controllable particle size, and stable operation.

Coal slag

I. Why Is a Roll Crusher Suitable for Coal Slag Processing?

Coal slag is a medium-hardness brittle material (compressive strength below 160MPa), ideal for roll crushers. The machine uses two counter-rotating rolls — material falls into the gap, is crushed by compression, and discharges from the bottom.

Unlike hammer crushers that use high-speed impact, the roll crusher relies on low-speed compression — uniform crushing without violent impact. Key advantages for coal slag processing:

1. Extremely low over-crushing rate, effectively preserving qualified particles

Hammer crushers generate excessive ultrafine coal powder through high-speed impact, wasting raw material. The roll crusher uses compression — not violent striking — producing minimal powder (under 3mm) and maximizing retention of target particle sizes. The crushed material is uniform with low fines content, simplifying downstream screening and reducing production costs.

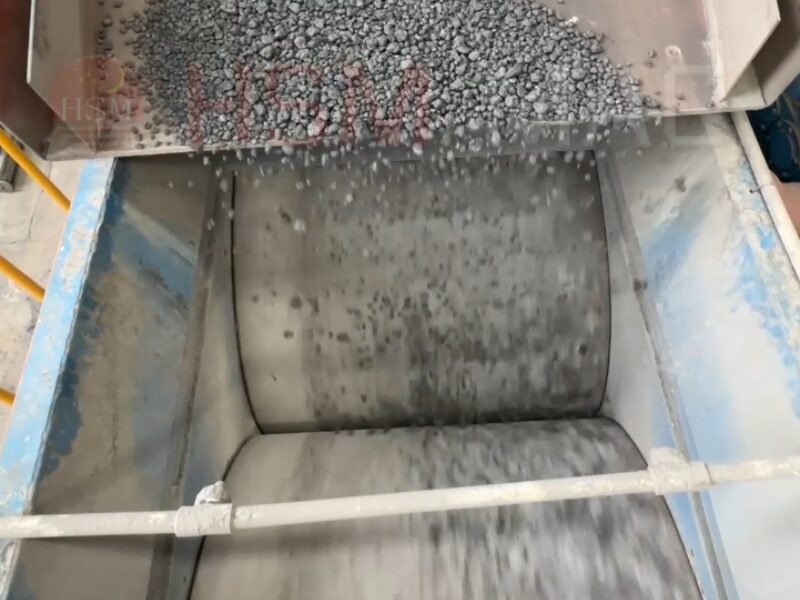

Coal slag crusher production site

2. Handles both dry and wet materials without roll sticking

Coal slag often contains moisture. Traditional screen-equipped crushers suffer from screen blinding and clogging. The roll crusher has a relatively open structure with specially treated roll surfaces. Even with high moisture content, material does not stick to the rolls or cause clogging — ensuring consistent particle size and normal operation. It is particularly suitable for high-moisture coal slag from power plants and industrial boilers.

3. Precise particle size control – one machine, multiple specifications

Output particle size is controlled by adjusting the roll gap, typically ranging from 0.5-30mm. Whether fine powder for brick making, coarse particles for blending, or medium-sized aggregates for subbase fill — one machine meets different downstream requirements through simple adjustment.

4. Stable operation, easy maintenance

The roll crusher features a simple, compact structure with minimal space requirement, making operation and maintenance convenient. Internal dust-proof plates ensure good sealing with low dust and noise. The equipment is equipped with safety protection devices — when unexpected iron objects enter the crushing chamber, the protection mechanism allows them to pass through while the equipment continues normal operation.

Crushed coal slag finished product

II. Summary

For coal slag crushing, the roll crusher delivers core value: low fines, stable particle size, no roll sticking. Huashengming roll crusher, with its low-speed compression crushing principle adapted to coal slag characteristics, produces uniform, controllable output with stable and reliable operation — making it a worthy consideration for fine crushing in coal slag resource utilization applications.
