In the mining and aggregate industries, cone crushers and roll crushers are both commonly used for medium and fine crushing applications. Both fall under the category of compression-type crushers, but they differ significantly in working principles, material suitability, product particle size, and operating costs. Below is a comparison from several key perspectives.

Working Principle

Cone crusher relies on the gyratory motion of the mantle, driven by an eccentric assembly. When the mantle approaches the concave, it compresses the material; when it moves away, the material is discharged. This “compression + bending” crushing method offers high throughput but is relatively coarse in its crushing action.

Roll crusher relies on two counter-rotating rolls that apply sustained compressive force to the material, achieving crushing through compression and shearing. The material is uniformly compressed within the roll gap, fracturing along natural textures and fissures. The crushing process is more controlled and gentle.

Double Roller Crusher

Product Particle Size and Shape

Cone crushers typically produce a discharge size ranging from 10–30mm, with a relatively high percentage of flaky and elongated particles (generally above 15%). Achieving finer particle sizes often requires additional downstream fine crushing equipment.

Roll crushers offer flexible discharge size control between 1–20mm, with online hydraulic gap adjustment for precise particle sizing. The finished product contains a higher proportion of cubical particles, lower flaky and elongated content, and significantly lower over-grinding rates compared to cone crushers. This makes roll crushers more suitable for sand-making applications that demand precise particle size control.

Material Suitability

Cone crushers are suitable for high-hardness materials (compressive strength ≤300MPa), such as granite, iron ore, and basalt. However, they are sensitive to material moisture content and can experience clogging when processing wet materials.

Roll crushers are suitable for medium-hardness materials (compressive strength up to 250MPa), such as limestone, coal gangue, and pebbles. They offer high tolerance to moisture content, are not prone to clogging, and can stably process wet materials.

Crushing Material Comparison

Throughput and Energy Consumption

Cone crushers have high single-machine throughput (45–1200 tons/hour), making them ideal for large-scale production lines. Roll crushers cover a capacity range of 5–400 tons/hour, suitable for small to medium-scale operations and fine crushing applications that require precise particle size control..

In terms of energy consumption, roll crushers utilize an inter-particle crushing process with higher energy efficiency, delivering significant energy savings. The roll shell is manufactured using Hua Sheng Ming’s proprietary formulation and process, offering long service life and far lower operating and maintenance costs compared to the frequent liner replacement required for cone crushers.

How Can They Be Used Together?

Cone crushers and roll crushers are not an “either/or” choice; rather, they are often used in combination. In actual production, the three-stage crushing process of “jaw crusher + cone crusher + roll crusher” is a common configuration—the jaw crusher handles primary crushing, the cone crusher takes on secondary crushing, and the roll crusher completes fine crushing, providing a uniform feed for the ball mill.

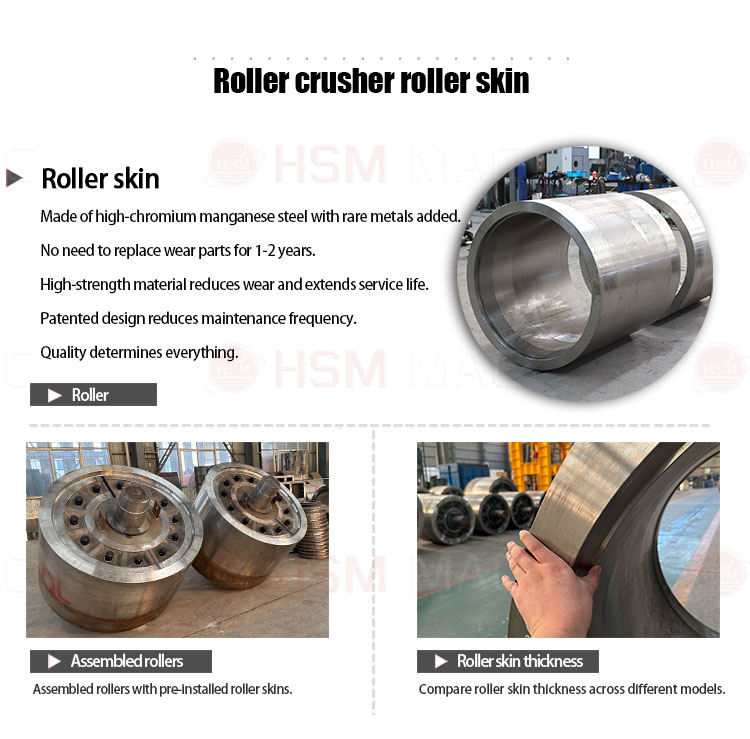

roll crusher roll shell

This configuration is used in various applications, including hard rock sand making and metal ore fine crushing. It leverages the high throughput advantage of the cone crusher while using the roll crusher to compensate for the cone crusher’s limitations in achieving finer particle sizes and better particle shape.

When selecting equipment, it’s not just about whether it can crush, but whether the output meets your requirements and whether the long-term operating costs are justified. With its performance in precise particle size control, low over-grinding, and operating economy, the Hua Sheng Ming roll crusher has become an ideal fine crushing solution positioned between the cone crusher and the ball mill.
