Huashengming gold crusher machine integrates flexible crushing technology and hydraulic fine crushing capabilities, addressing both coarse crushing of large gold ore blocks (950mm feed size) and fine sand production (1mm output size).
gold crusher machine
1. Core Product Series and Specifications

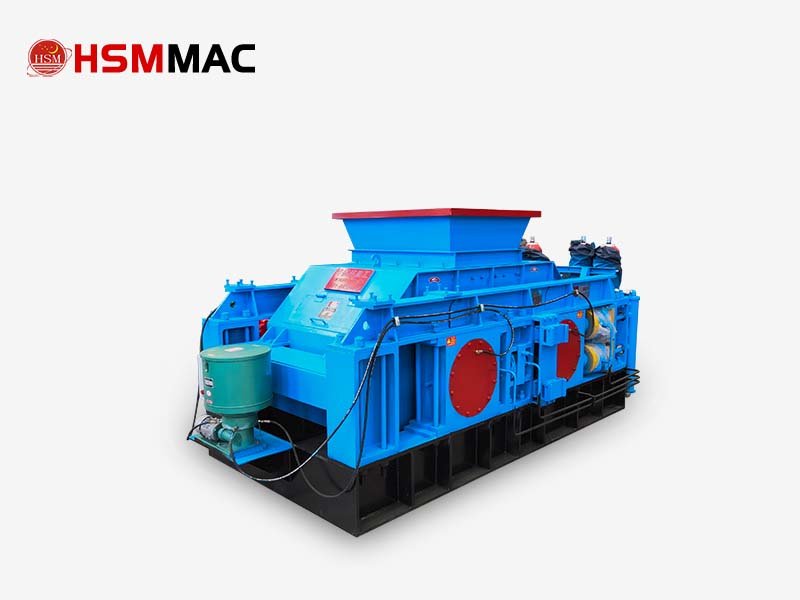

Tooth Roller Crusher (Gold Ore Coarse/Medium Crushing)
Model: 2PGC1000×1200
Feed Size: 700–950mm (Suitable for large gold ore blocks)
Discharge Size: 30–200mm (Adjustable, precise gradation control)
Capacity: 180–220 tons/hour
Drive Type: Motor-driven, compression crushing principle, roller length 750mm, weight 18.8 tons.
Price: Approx. ¥52,600 (base configuration).
Model: 2PGC600×900
Feed size: 300–600mm
Output size: 30–150mm
Throughput: 80–120 tons/hour
Motor power: 110kW, weight 900kg.

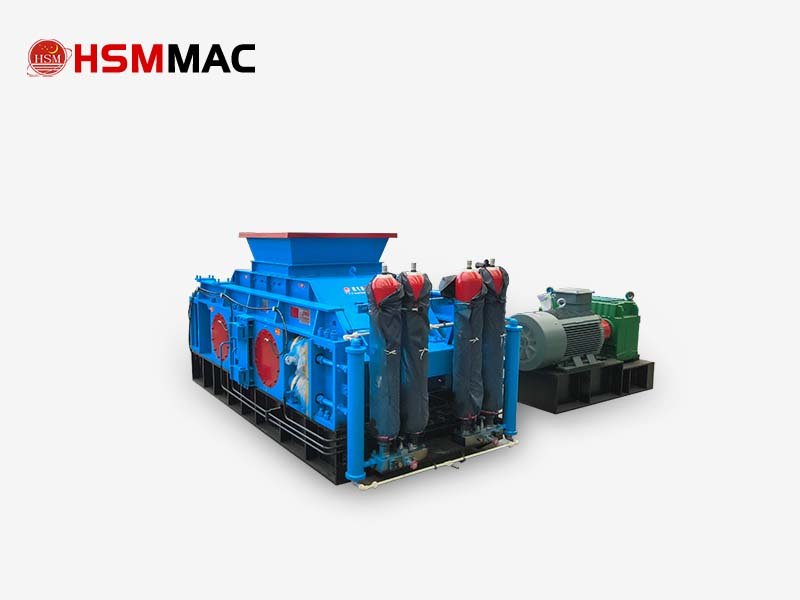

Hydraulic Double-Roller Sand Maker (Gold Ore Fine Crushing)
Model: 2PGY1200×1200
Feed size: ≤50mm
Output Size: 1–9mm (adjustable to fine sand grade)
Processing Capacity: 80–150 tons/hour
Motor Power: 2×75kW (total 150kW), roller shells made of high-chromium manganese steel alloy (wear resistance life ≥2 years).
Features: Fully automatic hydraulic system, supports precise particle size adjustment, over-crushing rate <5%.
2. Technical Advantages and Innovative Design
Flexible Crushing Technology
Preserves primary gold ore structure through tooth-roller compression, preventing metal loss from over-crushing and reducing powder generation by 15–20%.
Custom tooth profiles: Supports wolf teeth, square wave teeth, etc., adapted for high-hardness gold ores (requires thickened wolf teeth for enhanced wear resistance).
Intelligent Control System
Automated Process:
Sensors (B1–B4) monitor truck position, material weight, and height in real time, automatically starting/stopping the crusher and conveyor belt.
10-second shutdown delay + 3-second audible/visual alarm (siren P1) ensures safety and energy optimization.
Overload Protection: Dual hydraulic overload protection prevents equipment damage from foreign objects like iron blocks.
Wear Resistance & Maintenance Optimization
Roller Shell Material: High-chromium manganese steel alloy (containing rare metals), ≥2-year lifespan, national patent pending.
Modular Design: Quick-release structure reduces maintenance time by 40%, supports on-site roller replacement.
gold crusher machine
3. Application Scenarios & Selection Recommendations
| Application Scenario | Recommended Model | Key Advantages |
|---|---|---|
| Large Gold Ore Nuggets (700–950mm) | 2PGC1000×1200 | Large Feed Opening + High Processing Capacity (220 tons/hour) |
| Fine Sand Making (1–9mm Output) | 2PGY1200×1200 | Hydraulic particle size adjustment, wear-resistant roller skin ensures efficient fine crushing |
| Small-to-Medium Scale Gold Ore Crushing | 2PGC600×900 | High cost-performance ratio, accommodates 300–600mm feed size |
| High-Humidity Gold Ore Tailings | Two-Stage Crusher (Customized) | Screenless anti-clogging design, two crushing chambers in series |
