In industries such as coal washing, coking, and thermal power generation, the crushing stage is frequently hampered by wet and sticky materials. Run-of-mine (ROM) coal, washed middlings, and coke breeze during the rainy season often have high moisture content and a tacky texture. These materials easily clog the screens or chambers of traditional crushers, leading to frequent downtime for manual cleaning and severely disrupting production continuity.

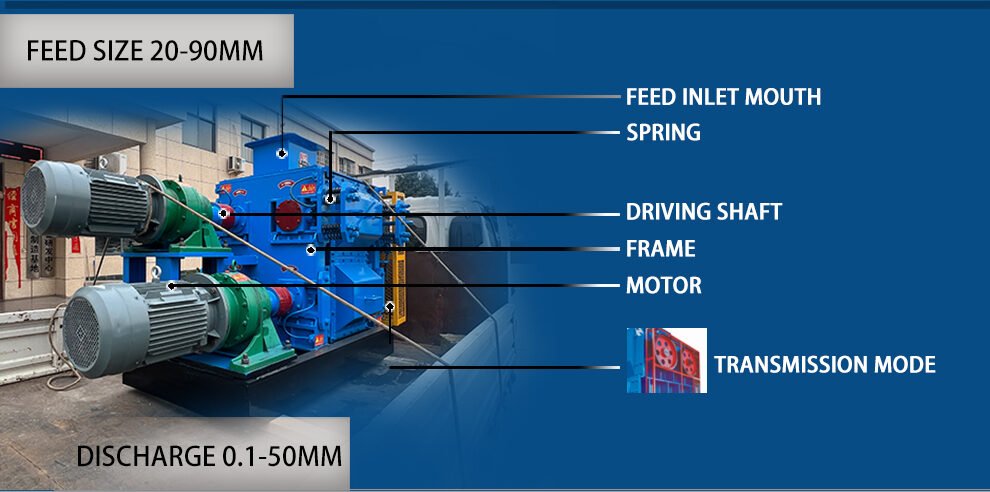

Four-Roll Crusher

The Four-Roll Crusher, with its unique screen-free, vertical open-chamber design, has become the definitive equipment for coal-based materials, achieving a truly “non-stick, non-clogging, and smooth” crushing process.

I. The Core of “Non-Clogging”: A Simplified, Screen-Free Flow

Traditional hammer or impact crushers rely on screen plates (grates) to control discharge size. When high-moisture coal enters, fine coal slime quickly coats the screen holes, forming a dense “coal cake” that blocks discharge and forces a total line shutdown.

The Four-Roll Crusher completely abandons the screen mesh. Instead, the final particle size is controlled directly by the physical gap between the bottom rollers. As long as the particles are smaller than this gap, they are discharged smoothly via gravity. The entire crushing chamber acts as a vertical, unobstructed conduit with no horizontal dead zones or intercepting structures. This design fundamentally eliminates “screen blinding”—the primary source of failure in wet coal processing.

• Case Study: At a thermal power plant processing ROM coal with 15% moisture during the monsoon, the Four-Roll Crusher achieved 72 hours of continuous, clog-free operation, whereas the hammer crushers previously used required shutdowns for screen cleaning every 6 hours on average.



  Four-Roll Crusher

II. “Non-Stick” Measures: Surface Treatment & Forced Discharge

While the Four-Roll Crusher primarily relies on its structural geometry to prevent blockages, advanced models incorporate supplemental features for extremely tacky materials like lignite:

• Specialized Roller Surfaces: Application of wear-resistant, anti-stick coatings to reduce material adhesion.

• Differential Speed Design: Operating the rollers at slightly different rotational speeds creates a shearing force that automatically strips away any material attempting to adhere to the roller surface.

• Forced Discharge Mechanisms: Integrated scrapers or vibrators at the base of the chamber ensure that even minor accumulations are promptly cleared.

III. Positioning as “Coal-Series Dedicated Equipment”

The Four-Roll Crusher is engineered specifically for the following coal-based materials:

• ROM Coal / Washed Middlings: Regardless of moisture levels, it consistently crushes material to the required size (e.g., 10–50mm).

• Coke: For brittle and hard coke, the four-roll system minimizes over-crushing, preserving the lump strength required for blast furnace charging.

• Coal Gangue / Slag: The integrated overload protection system effectively handles hard impurities found in complex compositions.

Its dual-stage crushing chamber completes the transition from medium to fine crushing within a single unit, eliminating the need for intermediate screening or recirculation, thus streamlining the entire process flow.

Summary

“Non-stick and non-clogging” describes the machine’s core competency in handling wet, tacky materials, while “Smooth Crushing of Coal and Coke” represents its proven field performance. The value of the Four-Roll Crusher lies in its simple yet robust architecture, solving the industry’s most frustrating operational challenges and providing a solid guarantee for stable, continuous coal processing.
